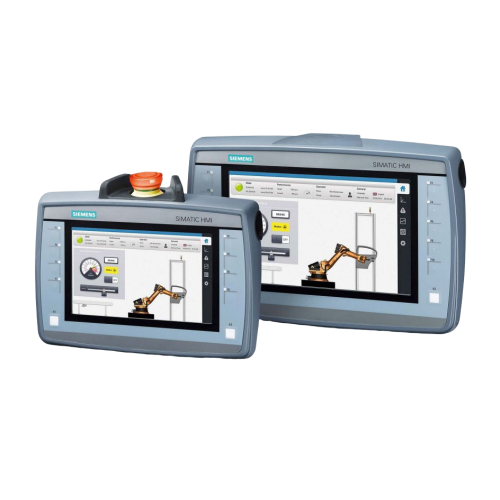

Mobile Panels 2nd Generation

The second generation of SIMATIC HMI Mobile Panels impresses with its convenience, performance and quality.

Mobile Panels 2nd Generation
Mobile Panels 2nd Generation

Overview

  • SIMATIC HMI KTP700F Mobile HW
  • SIMATIC HMI KTP700F Mobile HW/OR
  • SIMATIC HMI TP1000F Mobile
  • SIMATIC HMI KTP400F Mobile
  • SIMATIC HMI KTP700 Mobile
  • SIMATIC HMI KTP700F Mobile
  • SIMATIC HMI KTP900 Mobile
  • SIMATIC HMI KTP900F Mobile

Benefits

Brilliant wide-screen display

The display, with its aspect ratio of 16:9, delivers an extremely sharp, bright and detailed image and can use its 16 million colors and around 40% larger display area to depict even the most complex operating screens and graphics. The display is 100% dimmable and can thus be adapted to suit different surroundings.

Unique safety solution

The device versions with an emergency stop/stop pushbutton on the top and an acknowledgment button on the back of the device permit a flexible configuration of the safety solution.
The emergency stop button is only active and illuminated in red when the device is connected to a safety circuit via the connection box.
The new devices support the evaluation of the safety elements via hard-wired safety relays (e.g. SIRIUS 3SK1) and via PROFIsafe with fail-safe controllers (such as SIMATIC S7-1500F).

Innovative service and commissioning concept

Reduction of service and commissioning costs due to:

  • Short configuring and commissioning times through efficient engineering and fast project downloading
  • Automatic backup via optional SIMATIC HMI memory card
  • Long service life of the backlit display
  • Maintenance-free design

Rugged industrial design

  • Dust-proof and jet-proof enclosure with IP65 degree of protection on all sides
  • Extremely impact-resistant device with a safe drop height of 1.2 meters
  • Resistant to operating substances

Efficient engineering

The second generation of Mobile Panels has the same aspect ratio and resolution as the Comfort Panels. Using the TIA Portal (WinCC) engineering tool with the innovative new Style Editor, it is now possible to configure operating screens for both stationary and mobile applications. Users only need to select the new Mobile Panel in the TIA Portal configuration. The configuration can then be supplemented with specific functions for mobile use.

Application

Regardless of the industry or application, if mobility is required for the on-site control and monitoring of machines and plants, SIMATIC HMI Mobile Panels offer some crucial advantages: The machine operators or commissioning engineers are able to work exactly where they have the best view of the workpiece or process.

Even for larger production facilities, complex or enclosed machines, long materials handling or production lines and conveyor systems, mobile operator panels allow fast and precise setting up and positioning during commissioning. They also ensure shorter downtimes during retooling, maintenance or repairs.

Design

KTP400F Mobile

  • Dimmable 4.0″ widescreen TFT display, 480 x 272 resolution, 16 million colors
  • 1 Ethernet interface (TCP/IP, PROFINET)
  • 1 USB interface
  • Touch screen and 4 tactile function keys, including LEDs
  • 2 illuminated pushbuttons

KTP700 Mobile

  • Dimmable 7.0″ widescreen TFT display, 800 x 480 resolution, 16 million colors
  • 1 Ethernet interface (TCP/IP, PROFINET)
  • 1 USB interface
  • 1 SD card slot
  • Touch screen and 8 tactile function keys, including LEDs
  • 2 illuminated pushbuttons

KTP700F Mobile

  • Dimmable 7.0″ widescreen TFT display, 800 x 480 resolution, 16 million colors
  • 1 Ethernet interface (TCP/IP, PROFINET, PROFIsafe)
  • 1 USB interface
  • 1 SD card slot
  • Touch screen and 8 tactile function keys, including LEDs
  • 2 illuminated pushbuttons
  • 1 key-operated switch
  • 1 three-stage acknowledgment button
  • 1 emergency stop/stop button

KTP900 Mobile

  • Dimmable 9.0″ widescreen TFT display, 800 x 480 resolution, 16 million colors
  • 1 Ethernet interface (TCP/IP, PROFINET)
  • 1 USB interface
  • 1 SD card slot
  • Touch screen and 10 tactile function keys, including LEDs
  • 2 illuminated pushbuttons

KTP900F Mobile

  • Dimmable 9.0″ widescreen TFT display, 800 x 480 resolution, 16 million colors
  • 1 Ethernet interface (TCP/IP, PROFINET, PROFIsafe)
  • 1 USB interface
  • 1 SD card slot
  • Touch screen and 10 tactile function keys, including LEDs
  • 2 illuminated pushbuttons
  • 1 key-operated switch
  • 1 three-stage acknowledgment button
  • 1 emergency stop/stop button

Function

Connection concept with integrated connection point detection

The Mobile Panels enable you to operate the procedure directly on site. The connection concept supports you in setting up the plant.

Three different types of connection box are available:

  • Connection Box, Compact
  • Connection Box, Standard
  • Connection Box, Advanced

Detailed information on the connection boxes can be found under “System components for Mobile Panels -> Connection box for Mobile Panels of the 2nd Generation”.

A connection box can be mounted, for example, at any operator station. The operator inserts the Mobile Panel in the required connection box and can then operate it at this location. The cable length required between panel and connection box is between 2 and 25 meters. On completion of the task, the panel can be detached from the connection box and operation can be continued from another operator station. The operator panel contains a maintenance-free stored energy feature so that the operator can continue working after reconnecting, without the need for rebooting. The buffering time is up to 5 minutes.

By setting an ID number in the connection box, the location of the Mobile Panel can be clearly identified. This enables location-specific functions to be initiated or programmed. For example, the appropriate operating screen for the operator station is then displayed automatically.

Illuminated emergency stop/stop button

The safety-oriented Mobile Panels have a unique illuminated emergency stop/stop button. This is configurable depending on the application and therefore has several advantages:

  • On the one hand, the pushbutton can be configured as a red/yellow emergency stop button and, on the other hand, as a gray stop button.
  • If the device is inactive, the illumination is switched off and the button is not recognizable as an emergency stop button.
  • In the inactive state, a device with a configured emergency stop button can be positioned immediately adjacent to the system and does not have to be kept locked as otherwise required by a work instruction.

Evaluation of emergency stop/stop pushbutton and acknowledgment button

The safety-related control elements, emergency stop/stop pushbutton and acknowledgment button can be evaluated by means of various options:

  • Software evaluation by means of PROFIsafe in conjunction with an F-PLC
  • Hardware evaluation by means of fixed wiring in the connection box via safety inputs of a PLC or safety relay

Technical specifications

Article number 6AV2125-2DB23-0AX0 6AV2125-2GB03-0AX0 6AV2125-2GB23-0AX0 6AV2125-2JB03-0AX0 6AV2125-2JB23-0AX0
SIMATIC HMI KTP400F Mobile SIMATIC HMI KTP700 Mobile SIMATIC HMI KTP700F Mobile SIMATIC HMI KTP900 Mobile SIMATIC HMI KTP900F Mobile
General information
Product type designation KTP400F Mobile KTP700 Mobile KTP700F Mobile KTP900 Mobile KTP900F Mobile
Display
Design of display TFT TFT widescreen display, LED backlighting TFT widescreen display, LED backlighting TFT widescreen display, LED backlighting TFT widescreen display, LED backlighting
Screen diagonal 4.3 in 7 in 7 in 9 in 9 in
Color display Yes Yes Yes Yes Yes
Number of colors 16 777 216 16 777 216 16 777 216 16 777 216 16 777 216
Resolution (pixels)
● Horizontal image resolution 480 Pixel 800 Pixel 800 Pixel 800 Pixel 800 Pixel
● Vertical image resolution 272 Pixel 480 Pixel 480 Pixel 480 Pixel 480 Pixel
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h 50 000 h 50 000 h 50 000 h 50 000 h
● Backlight dimmable Yes; 0-100 % Yes; 0-100 % Yes; 0-100 % Yes; 0-100 % Yes; 0-100 %
Control elements
Keyboard fonts
● Function keys
— Number of function keys 4 8 8 10 10
— Number of function keys with LEDs 4 8 8 10 10
● Keys with LED Yes Yes Yes Yes Yes
● Numeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes Yes Yes Yes Yes
● Design as multi-touch screen No No No No No
Special operator controls
● Stop button (forced blocking) Yes No Yes No Yes
● Emergency stop button (illuminated and forced blocking) Yes No Yes No Yes
● Acknowledgement button (3-stage) Yes No Yes No Yes
● Key-operated switch No No Yes No Yes
● Illuminated pushbutton Yes Yes Yes Yes Yes
Camera
● integrated camera No No No No No
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1…Fx 4 8 8 10 10
● Direct keys (keys as S7 input I/O)
— F1…Fx 4 8 8 10 10
● Direct keys (touch buttons as S7 input I/O) 32 32 32 32 32
Supply voltage
Type of supply voltage DC DC DC DC DC
Rated value (DC) 24 V 24 V 24 V 24 V 24 V
permissible range, lower limit (DC) 19.2 V 19.2 V 19.2 V 19.2 V 19.2 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V 28.8 V 28.8 V
Input current
Current consumption (rated value) 210 mA 350 mA 350 mA 450 mA 450 mA
Starting current inrush I²t 0.37 A²·s 0.135 A²·s 0.135 A²·s 0.135 A²·s 0.135 A²·s
Power
Active power input, typ. 5 W 8.5 W 8.5 W 11 W 11 W
Processor
Processor type ARM ARM ARM ARM ARM
Memory
Flash Yes Yes Yes Yes Yes
RAM Yes Yes Yes Yes Yes
Memory available for user data 4 Mbyte 12 Mbyte 12 Mbyte 12 Mbyte 12 Mbyte
Type of output
Power LED No No No No No
LED for safe No No No No No
LED for communication No No No No No
LED for battery No No No No No
Vibrations No No No No No
Time of day
Clock
● Hardware clock (real-time) Yes Yes Yes Yes Yes
● retentive Yes Yes Yes Yes Yes
● synchronizable Yes Yes Yes Yes Yes
Interfaces
Number of industrial Ethernet interfaces 1 1 1 1 1
Number of PROFINET interfaces 1 1 1 1 1
Number of RS 485 interfaces 0 0 0 0 0
Number of RS 422 interfaces 0 0 0 0 0
Number of RS 232 interfaces 0 0 0 0 0
Number of USB interfaces 1; USB 2.0 1; USB 2.0 1; USB 2.0 1; USB 2.0 1; USB 2.0
Number of 20 mA interfaces (TTY) 0 0 0 0 0
Number of parallel interfaces 0 0 0 0 0
Number of other interfaces 0 0 0 0 0
Number of wireless interfaces 0 0 0 0 0
Number of SD card slots 0 1 1 1 1
With software interfaces No No No No No
Protocols
PROFINET Yes Yes Yes Yes Yes
Supports protocol for PROFINET IO Yes Yes Yes Yes Yes
PROFIsafe Yes No Yes No Yes
PROFIBUS No No No No No
MPI No No No No No
Protocols (Ethernet)
● TCP/IP Yes Yes Yes Yes Yes
● DHCP Yes Yes Yes Yes Yes
● SNMP Yes Yes Yes Yes Yes
● DCP Yes Yes Yes Yes Yes
● LLDP Yes Yes Yes Yes Yes
WEB characteristics
● HTTP Yes Yes Yes Yes Yes
● HTTPS Yes Yes Yes Yes Yes
● HTML Yes Yes Yes Yes Yes
● XML No No No No No
● CSS Yes Yes Yes Yes Yes
● Active X No No No No No
● JavaScript Yes Yes Yes Yes Yes
● Java VM No No No No No
Further protocols
● EtherNet/IP Yes Yes Yes Yes Yes
● MODBUS Yes Yes Yes Yes Yes
● other bus systems No No No No No
Communication functions
Wireless communication
● supported standards
— Radio standard WLAN 802.11 No No No No No
— Bluetooth radio standard No No No No No
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable Yes Yes Yes Yes Yes
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes Yes Yes Yes Yes
● Limit class B, for use in residential areas No No No No No
Degree and class of protection
IP65 (all-round) Yes Yes Yes Yes Yes
Standards, approvals, certificates
CE mark Yes Yes Yes Yes Yes
cULus Yes Yes Yes Yes Yes
RCM (formerly C-TICK) Yes Yes Yes Yes Yes
KC approval No; Available soon No; Available soon No; Available soon No; Available soon No; Available soon
Suitable for safety functions Yes No Yes No Yes
Marine approval Yes Yes Yes Yes Yes
Highest safety class achievable in safety mode
● Performance level according to ISO 13849-1 PLe none PLe none PLe
● SIL acc. to IEC 61508 SIL 3 No SIL 3 No SIL 3
Use in hazardous areas
● ATEX Zone 2 No No No No No
● ATEX Zone 22 No No No No No
● IECEx Zone 2 No No No No No
● IECEx Zone 22 No No No No No
● cULus Class I Zone 1 No No No No No
● cULus Class I Zone 2, Division 2 No No No No No
● FM Class I Division 2 No No No No No
Marine approval
● Germanischer Lloyd (GL) Yes Yes Yes Yes Yes
● American Bureau of Shipping (ABS) Yes Yes Yes Yes Yes
● Bureau Veritas (BV) No; Available soon No; Available soon No; Available soon No; Available soon No; Available soon
● Det Norske Veritas (DNV) Yes Yes Yes Yes Yes
● Korean Register of Shipping (KRS) No No No No No
● Lloyds Register of Shipping (LRS) Yes Yes Yes Yes Yes
● Nippon Kaiji Kyokai (Class NK) Yes Yes Yes Yes Yes
● Polski Rejestr Statkow (PRS) No No No No No
● Chinese Classification Society (CCS) No No No No No
Ambient conditions
Free fall
● Fall height, max. 1.2 m 1.2 m 1.2 m 1.2 m 1.2 m
Ambient temperature during operation
● min. 0 °C 0 °C 0 °C 0 °C 0 °C
● max. 45 °C 45 °C 45 °C 45 °C 45 °C
Ambient temperature during storage/transportation
● min. -20 °C -20 °C -20 °C -20 °C -20 °C
● max. 60 °C 60 °C 60 °C 60 °C 60 °C
Relative humidity
● Operation, max. 90 % 90 % 90 % 90 % 90 %
Operating systems
pre-installed operating system
● Windows CE Yes Yes Yes Yes Yes
Configuration
Message indicator Yes Yes Yes Yes Yes
Alarm system (incl. buffer and acknowledgment) Yes Yes Yes Yes Yes
Process value display (output) Yes Yes Yes Yes Yes
Process value default (input) possible Yes Yes Yes Yes Yes
Recipe management Yes Yes Yes Yes Yes
Configuration software
● STEP 7 Basic (TIA Portal) No No No No No
● STEP 7 Professional (TIA Portal) No No No No No
● WinCC flexible Compact No No No No No
● WinCC flexible Standard No No No No No
● WinCC flexible Advanced No No No No No
● WinCC Basic (TIA Portal) No No No No No
● WinCC Comfort (TIA Portal) Yes Yes Yes Yes Yes
● WinCC Advanced (TIA Portal) Yes Yes Yes Yes Yes
● WinCC Professional (TIA Portal) Yes Yes Yes Yes Yes
Languages
Online languages
● Number of online/runtime languages 32 32 32 32 32
Project languages
● Languages per project 32 32 32 32 32
Functionality under WinCC (TIA Portal)
Libraries Yes Yes Yes Yes Yes
Applications/options
● Web browser Yes Yes Yes Yes Yes
● Pocket Word No No No No No
● Pocket Excel No No No No No
● PDF Viewer Yes Yes Yes Yes Yes
● Media Player No No No No No
● SIMATIC WinCC Sm@rtServer Yes Yes Yes Yes Yes
● SIMATIC WinCC Audit Yes Yes Yes Yes Yes
Number of Visual Basic Scripts Yes Yes Yes Yes Yes
Task planner
● time-controlled Yes Yes Yes Yes Yes
● task-controlled Yes Yes Yes Yes Yes
Help system
● Number of characters per info text 500 500 500 500 500
Multiproject
● Number of projects (internal) 0 0 0 0 0
● Number of projects (external) 0 0 0 0 0
Message system
● Number of alarm classes 32 32 32 32 32
● Bit messages
— Number of bit messages 4 000 4 000 4 000 4 000 4 000
● Analog messages
— Number of analog messages 200 200 200 200 200
● S7 alarm number procedure Yes Yes Yes Yes Yes
● System messages HMI Yes Yes Yes Yes Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes Yes Yes Yes Yes
● Number of characters per message 80 80 80 80 80
● Number of process values per message 8 8 8 8 8
● Acknowledgment groups Yes Yes Yes Yes Yes
● Message indicator Yes Yes Yes Yes Yes
● Message buffer
— Number of entries 1 024 1 024 1 024 1 024 1 024
— Circulating buffer Yes Yes Yes Yes Yes
— retentive Yes Yes Yes Yes Yes
— maintenance-free Yes Yes Yes Yes Yes
Recipe management
● Number of recipes 300 300 300 300 300
● Data records per recipe 500 500 500 500 500
● Entries per data record 1 000 1 000 1 000 1 000 1 000
● Size of internal recipe memory 2 Mbyte 2 Mbyte 2 Mbyte 2 Mbyte 2 Mbyte
● Recipe memory expandable Yes Yes Yes Yes Yes
Variables
● Number of variables per device 2 048 2 048 2 048 2 048 2 048
● Number of variables per screen 50 400 400 400 400
● Limit values Yes Yes Yes Yes Yes
● Multiplexing Yes Yes Yes Yes Yes
● Structures Yes Yes Yes Yes Yes
● Arrays Yes Yes Yes Yes Yes
Images
● Number of configurable images 500 500 500 500 500
● Permanent window/default Yes Yes Yes Yes Yes
● Global image Yes Yes Yes Yes Yes
● Pop-up images Yes
● Slide-in images Yes
● Image selection by PLC Yes Yes Yes Yes Yes
● Image number in the PLC Yes Yes Yes Yes Yes
Image objects
● Number of objects per image 50 400 400 400 400
● Text fields Yes Yes Yes Yes Yes
● I/O fields Yes Yes Yes Yes Yes
● Graphic I/O fields (graphics list) Yes Yes Yes Yes Yes
● Symbolic I/O fields (text list) Yes Yes Yes Yes Yes
● Date/time fields Yes Yes Yes Yes Yes
● Switches Yes Yes Yes Yes Yes
● Graphic display Yes Yes Yes Yes Yes
● Icons Yes Yes Yes Yes Yes
● Geometric objects Yes Yes Yes Yes Yes
Complex image objects
● Number of complex objects per screen 5 20 20 20 20
● Alarm view Yes Yes Yes Yes Yes
● Trend view Yes Yes Yes Yes Yes
● User view Yes Yes Yes Yes Yes
● Status/control Yes Yes Yes Yes Yes
● Sm@rtClient view Yes Yes Yes Yes Yes
● Recipe view Yes Yes Yes Yes Yes
● f(x) trend view Yes Yes Yes Yes Yes
● System diagnostics view Yes Yes Yes Yes Yes
● Media Player No No No No No
● HTML browser No
● PDF display No
● IP camera display Yes
● Bar graphs Yes Yes Yes Yes Yes
● Sliders Yes Yes Yes Yes Yes
● Pointer instruments Yes Yes Yes Yes Yes
● Analog/digital clock Yes Yes Yes Yes Yes
Lists
● Number of text lists per project 500 500 500 500 500
● Number of entries per text list 500 500 500 500 500
● Number of graphics lists per project 500 500 500 500 500
● Number of entries per graphics list 500 500 500 500 500
Archiving
● Number of archives per device 50 50 50 50 50
● Number of entries per archive 20 000 20 000 20 000 20 000 20 000
● Message archive Yes Yes Yes Yes Yes
● Process value archive Yes Yes Yes Yes Yes
● Archiving methods
— Sequential archive Yes Yes Yes Yes Yes
— Short-term archive Yes Yes Yes Yes Yes
● Memory location
— Memory card No Yes Yes Yes Yes
— USB memory Yes Yes Yes Yes Yes
— Ethernet Yes Yes Yes Yes Yes
● Data storage format
— CSV Yes Yes Yes Yes Yes
— TXT No No No No No
— RDB Yes Yes Yes Yes Yes
Security
● Number of user groups 50 50 50 50 50
● Number of user rights 32 32 32 32 32
● Number of users 50 50 50 50 50
● Password export/import Yes Yes Yes Yes Yes
● SIMATIC Logon Yes Yes Yes Yes Yes
Logging through printer
● Alarms Yes Yes Yes Yes Yes
● Report (shift log) Yes Yes Yes Yes Yes
● Hardcopy Yes No No No No
● Electronic print to file No No No No No
Character sets
● Keyboard fonts
— US English Yes Yes Yes Yes Yes
Transfer (upload/download)
● MPI/PROFIBUS DP No No No No No
● USB No No No No No
● Ethernet Yes Yes Yes Yes Yes
● Wireless LAN No No No No No
● using external storage medium Yes; Backup/restore Yes; Backup/restore Yes; Backup/restore Yes; Backup/restore Yes; Backup/restore
Process coupling
● S7-1200 Yes Yes Yes Yes Yes
● S7-1500 Yes Yes Yes Yes Yes
● S7-200 Yes Yes Yes Yes Yes
● S7-300/400 Yes Yes Yes Yes Yes
● LOGO! Yes Yes Yes Yes Yes
● WinAC Yes; WinAC RTX Yes; WinAC RTX Yes; WinAC RTX Yes; WinAC RTX Yes; WinAC RTX
● SINUMERIK Yes; without NC channel Yes Yes; without NC channel Yes Yes; without NC channel
● SIMOTION Yes Yes Yes Yes Yes
● Allen Bradley (EtherNet/IP) Yes Yes Yes Yes Yes
● Allen Bradley (DF1) No No No No No
● Mitsubishi (MC TCP/IP) Yes Yes Yes Yes Yes
● Mitsubishi (FX) No No No Yes Yes
● OMRON (FINS TCP) No No No No No
● OMRON (LINK/Multilink) No No No No No
● Modicon (Modbus TCP/IP) Yes Yes Yes Yes Yes
● Modicon (Modbus) No No No No No
● OPC UA Client Yes Yes Yes Yes Yes
● OPC UA Server Yes Yes Yes Yes Yes
Service tools/configuration aids
● Backup/Restore manually Yes Yes Yes Yes Yes
● Backup/Restore automatically No Yes Yes Yes Yes
● Simulation Yes Yes Yes Yes Yes
● Device switchover Yes Yes Yes Yes Yes
Peripherals/Options
Peripherals
● Printer Yes Yes Yes Yes Yes
● SIMATIC HMI MM memory card: Multi Media Card No Yes Yes Yes Yes
● SIMATIC HMI SD memory card: Secure Digital memory card No Yes Yes Yes Yes
● SIMATIC HMI CF memory card Compact Flash Card No
● USB memory Yes Yes Yes Yes Yes
● SIMATIC IPC USB Flashdrive (USB stick) Yes
● SIMATIC HMI USB stick Yes
● Network camera Yes Yes Yes Yes Yes
Additional software components loadable Yes; SIMATIC options Yes; SIMATIC options Yes; SIMATIC options Yes; SIMATIC options Yes; SIMATIC options
Mechanics/material
Enclosure material (front)
● Plastic Yes Yes Yes Yes Yes
● Aluminum No No No No No
● Stainless steel No No No No No
Dimensions
Width of the housing front 194 mm 248.4 mm 248.4 mm 307.5 mm 307.5 mm
Height of housing front 166 mm 171.7 mm 194.9 mm 200.9 mm 223.5 mm
Weights
Weight (without packaging) 0.7 kg 1.2 kg 1.3 kg 1.5 kg 1.6 kg
Weight incl. packaging 0.95 kg 1.3 kg 1.4 kg 1.6 kg 1.7 kg

Article number 6AV2145-8GB00-0AA0 6AV2145-8GB01-0AA0 6AV2145-6KB20-0AS0
SIMATIC HMI KTP700F Mobile HW SIMATIC HMI KTP700F Mobile HW/OR SIMATIC HMI TP1000F MOBILE
General information
Product type designation SIMATIC HMI KTP700F Mobile HW SIMATIC HMI KTP700F Mobile HW/ OR TP1000F Mobile
Display
Design of display TFT widescreen display, LED backlighting TFT widescreen display, LED backlighting TFT widescreen display, LED backlighting
Screen diagonal 7 in 7 in 10.1 in
Color display Yes Yes Yes
Number of colors 16 000 000 16 000 000 16 777 216
Resolution (pixels)
● Horizontal image resolution 800 Pixel 800 Pixel 1 280 Pixel
● Vertical image resolution 480 Pixel 480 Pixel 800 Pixel
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h 50 000 h 50 000 h
● Backlight dimmable Yes; 0-100 % Yes; 0-100 % Yes; 0-100 %
Control elements
Keyboard fonts
● Function keys
— Number of function keys 6 6 0
— Number of function keys with LEDs 6 6 0
● Keys with LED Yes Yes No
● Numeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes Yes Yes
● Design as multi-touch screen No No No
Special operator controls
● Stop button (forced blocking) Yes Yes Yes
● Emergency stop button (illuminated and forced blocking) Yes Yes Yes
● Acknowledgement button (3-stage) Yes Yes Yes
● Key-operated switch Yes Yes Yes
● Illuminated pushbutton Yes Yes Yes
● Handwheel Yes Yes No
Camera
● integrated camera No No No
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1…Fx 6 6 0
● Direct keys (keys as S7 input I/O)
— F1…Fx 6 6 0
● Direct keys (touch buttons as S7 input I/O) 32 32 0
Supply voltage
Type of supply voltage DC DC DC
Rated value (DC) 24 V 24 V 24 V
permissible range, lower limit (DC) 19.2 V 19.2 V 19.2 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V
Input current
Current consumption (rated value) 450 mA
Starting current inrush I²t 0.2 A²·s
Power
Active power input, typ. 11 W
Processor
Processor type ARM
Memory
Flash Yes Yes Yes
RAM Yes Yes Yes
Memory available for user data 12 Mbyte 12 Mbyte 12 Mbyte
Type of output
Power LED No No No
LED for safe No No No
LED for communication No No No
LED for battery No No No
Vibrations No No No
Time of day
Clock
● Hardware clock (real-time) Yes Yes Yes
● retentive Yes Yes Yes
● synchronizable Yes Yes Yes
Interfaces
Number of industrial Ethernet interfaces 1 1 1
Number of PROFINET interfaces 1 1 1
Number of RS 485 interfaces 0 0 0
Number of RS 422 interfaces 0 0 0
Number of RS 232 interfaces 0 0 0
Number of USB interfaces 1; USB 2.0 1; USB 2.0 1; USB 2.0
Number of 20 mA interfaces (TTY) 0 0 0
Number of parallel interfaces 0 0 0
Number of other interfaces 0 0 0
Number of wireless interfaces 0 0 0
Number of SD card slots 1 1 1
With software interfaces No No No
Protocols
PROFINET Yes Yes Yes
Supports protocol for PROFINET IO Yes Yes Yes
PROFIsafe Yes Yes Yes
PROFIBUS No No No
MPI No No No
Protocols (Ethernet)
● TCP/IP Yes Yes Yes
● DHCP Yes Yes Yes
● SNMP Yes Yes Yes
● DCP Yes Yes Yes
● LLDP Yes Yes Yes
WEB characteristics
● HTTP Yes Yes Yes
● HTTPS Yes Yes Yes
● HTML Yes Yes Yes
● XML No No No
● CSS Yes Yes Yes
● Active X No No No
● JavaScript Yes Yes Yes
● Java VM No No No
Further protocols
● EtherNet/IP Yes Yes Yes
● MODBUS Yes Yes Yes
● other bus systems No No No
Communication functions
Wireless communication
● supported standards
— Radio standard WLAN 802.11 No No No
— Bluetooth radio standard No No No
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable Yes
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes
● Limit class B, for use in residential areas No
Degree and class of protection
IP65 (all-round) Yes Yes Yes
Standards, approvals, certificates
CE mark Yes Yes Yes
UL approval Yes Yes
cULus Yes Yes Yes
FM approval No No
RCM (formerly C-TICK) Yes Yes Yes
KC approval No No No
EAC (formerly Gost-R) Yes Yes
Suitable for safety functions Yes Yes Yes
Marine approval No No No
Highest safety class achievable in safety mode
● Performance level according to ISO 13849-1 PLe PLe PLe
● SIL acc. to IEC 61508 SIL 3 SIL 3 SIL 3
Use in hazardous areas
● ATEX Zone 2 No No No
● ATEX Zone 22 No No No
● IECEx Zone 2 No No No
● IECEx Zone 22 No No No
● cULus Class I Zone 1 No No No
● cULus Class I Zone 2, Division 2 No No No
● cULus Class II Division 2 No No
● FM Class I Division 2 No No No
● FM Class II Division 2 No No
Marine approval
● Germanischer Lloyd (GL) Yes Yes No
● American Bureau of Shipping (ABS) No
● Bureau Veritas (BV) No
● Det Norske Veritas (DNV) No
● Korean Register of Shipping (KRS) No
● Lloyds Register of Shipping (LRS) No
● Nippon Kaiji Kyokai (Class NK) No
● Polski Rejestr Statkow (PRS) No No No
● Chinese Classification Society (CCS) No
Ambient conditions
Free fall
● Fall height, max. 1.2 m 1.2 m 1.2 m
Ambient temperature during operation
● min. 0 °C 0 °C 0 °C
● max. 45 °C 45 °C 45 °C
Ambient temperature during storage/transportation
● min. -20 °C -20 °C -20 °C
● max. 60 °C 60 °C 60 °C
Relative humidity
● Operation, max. 90 % 90 % 90 %
Operating systems
pre-installed operating system
● Windows CE Yes Yes Yes
Configuration
Message indicator Yes Yes Yes
Alarm system (incl. buffer and acknowledgment) Yes Yes Yes
Process value display (output) Yes Yes Yes
Process value default (input) possible Yes Yes Yes
Recipe management Yes Yes Yes
Configuration software
● STEP 7 Basic (TIA Portal) No No No
● STEP 7 Professional (TIA Portal) No No No
● WinCC flexible Compact No No No
● WinCC flexible Standard No No No
● WinCC flexible Advanced No No No
● WinCC Basic (TIA Portal) No No No
● WinCC Comfort (TIA Portal) Yes Yes Yes
● WinCC Advanced (TIA Portal) Yes Yes Yes
● WinCC Professional (TIA Portal) Yes Yes Yes
Languages
Online languages
● Number of online/runtime languages 32 32 32
Project languages
● Languages per project 32 32 32
Functionality under WinCC (TIA Portal)
Libraries Yes Yes Yes
Applications/options
● Web browser Yes Yes Yes
● Pocket Word No No No
● Pocket Excel No No No
● PDF Viewer Yes Yes Yes
● Media Player No No No
● SIMATIC WinCC Sm@rtServer Yes Yes Yes
● SIMATIC WinCC Audit Yes Yes Yes
Number of Visual Basic Scripts Yes Yes Yes
Task planner
● time-controlled Yes Yes Yes
● task-controlled Yes Yes Yes
Help system
● Number of characters per info text 500 500 500
Multiproject
● Number of projects (internal) 0 0 0
● Number of projects (external) 0 0 0
Message system
● Number of alarm classes 32 32 32
● Bit messages
— Number of bit messages 4 000 4 000 4 000
● Analog messages
— Number of analog messages 200 200 200
● S7 alarm number procedure Yes Yes Yes
● System messages HMI Yes Yes Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes Yes Yes
● Number of characters per message 80 80 80
● Number of process values per message 8 8 8
● Acknowledgment groups Yes Yes Yes
● Message indicator Yes Yes Yes
● Message buffer
— Number of entries 1 024 1 024 1 024
— Circulating buffer Yes Yes Yes
— retentive Yes Yes Yes
— maintenance-free Yes Yes Yes
Recipe management
● Number of recipes 300 300 300
● Data records per recipe 500 500 500
● Entries per data record 1 000 1 000 1 000
● Size of internal recipe memory 2 Mbyte 2 Mbyte 2 Mbyte
● Recipe memory expandable Yes Yes Yes
Variables
● Number of variables per device 2 048 2 048 2 048
● Number of variables per screen 400 400 400
● Limit values Yes Yes Yes
● Multiplexing Yes Yes Yes
● Structures Yes Yes Yes
● Arrays Yes Yes Yes
Images
● Number of configurable images 500 500 500
● Permanent window/default Yes Yes Yes
● Global image Yes Yes Yes
● Image selection by PLC Yes Yes Yes
● Image number in the PLC Yes Yes Yes
Image objects
● Number of objects per image 400 400 400
● Text fields Yes Yes Yes
● I/O fields Yes Yes Yes
● Graphic I/O fields (graphics list) Yes Yes Yes
● Symbolic I/O fields (text list) Yes Yes Yes
● Date/time fields Yes Yes Yes
● Switches Yes Yes Yes
● Graphic display Yes Yes Yes
● Icons Yes Yes Yes
● Geometric objects Yes Yes Yes
Complex image objects
● Number of complex objects per screen 20 20 20
● Alarm view Yes Yes Yes
● Trend view Yes Yes Yes
● User view Yes Yes Yes
● Status/control Yes Yes Yes
● Sm@rtClient view Yes Yes Yes
● Recipe view Yes Yes Yes
● f(x) trend view Yes Yes Yes
● System diagnostics view Yes Yes Yes
● Media Player Yes Yes No
● Bar graphs Yes Yes Yes
● Sliders Yes Yes Yes
● Pointer instruments Yes Yes Yes
● Analog/digital clock Yes Yes Yes
Lists
● Number of text lists per project 500 500 500
● Number of entries per text list 500 500 500
● Number of graphics lists per project 500 500 500
● Number of entries per graphics list 500 500 500
Archiving
● Number of archives per device 50 50 50
● Number of entries per archive 20 000 20 000 20 000
● Message archive Yes Yes Yes
● Process value archive Yes Yes Yes
● Archiving methods
— Sequential archive Yes Yes Yes
— Short-term archive Yes Yes Yes
● Memory location
— Memory card Yes Yes Yes
— USB memory Yes Yes Yes
— Ethernet Yes Yes Yes
● Data storage format
— CSV Yes Yes Yes
— TXT No No No
— RDB Yes Yes Yes
Security
● Number of user groups 50 50 50
● Number of user rights 32 32 32
● Number of users 50 50 50
● Password export/import Yes Yes Yes
● SIMATIC Logon Yes Yes Yes
Logging through printer
● Alarms Yes Yes Yes
● Report (shift log) Yes
● Hardcopy No
● Electronic print to file Yes; PDF, HTML Yes; PDF, HTML No
Character sets
● Keyboard fonts
— US English Yes Yes Yes
Transfer (upload/download)
● MPI/PROFIBUS DP No No No
● USB No No No
● Ethernet Yes Yes Yes
● Wireless LAN No No No
● using external storage medium No No Yes; Backup/restore
Process coupling
● S7-1200 Yes Yes Yes
● S7-1500 Yes Yes Yes
● S7-200 Yes Yes Yes
● S7-300/400 Yes Yes Yes
● LOGO! Yes Yes Yes
● WinAC No No Yes; WinAC RTX
● SINUMERIK Yes Yes Yes; without NC channel
● SIMOTION Yes Yes Yes
● Allen Bradley (EtherNet/IP) Yes Yes Yes
● Allen Bradley (DF1) No No No
● Mitsubishi (MC TCP/IP) Yes Yes Yes
● Mitsubishi (FX) No No Yes
● OMRON (FINS TCP) Yes Yes No
● OMRON (LINK/Multilink) No No No
● Modicon (Modbus TCP/IP) Yes Yes Yes
● Modicon (Modbus) No No No
● OPC UA Client Yes
● OPC UA Server Yes
Service tools/configuration aids
● Backup/Restore manually Yes Yes Yes
● Backup/Restore automatically Yes Yes Yes
● Simulation Yes Yes Yes
● Device switchover Yes Yes Yes
Peripherals/Options
Peripherals
● Printer Yes Yes Yes
● SIMATIC HMI MM memory card: Multi Media Card Yes Yes Yes
● SIMATIC HMI SD memory card: Secure Digital memory card Yes Yes Yes
● USB memory Yes Yes Yes
● Network camera Yes Yes Yes
Additional software components loadable Yes; SIMATIC options Yes; SIMATIC options Yes; SIMATIC options
Mechanics/material
Enclosure material (front)
● Plastic Yes Yes Yes
● Aluminum No No No
● Stainless steel No No No
Dimensions
Width of the housing front 307.5 mm
Height of housing front 223.5 mm
Weights
Weight (without packaging) 1.48 kg 1.48 kg 1.6 kg
Weight incl. packaging 1.8 kg 1.8 kg 1.7 kg

Did you know, we are an entrusted Siemens approved partner?

Loading...
