KTP900F Mobile Panels 2nd Generation, 9.0 TFT Touch Display + 10 Function Keys, Acknowledgement switch & E-Stop Button
warranty

6AV21252JB230AX0

KTP900F Mobile Panels 2nd Generation, 9.0 TFT Touch Display + 10 Function Keys, Acknowledgement switch & E-Stop Button

Produced by Siemens

Availability Back Order

Price - £3,767.00

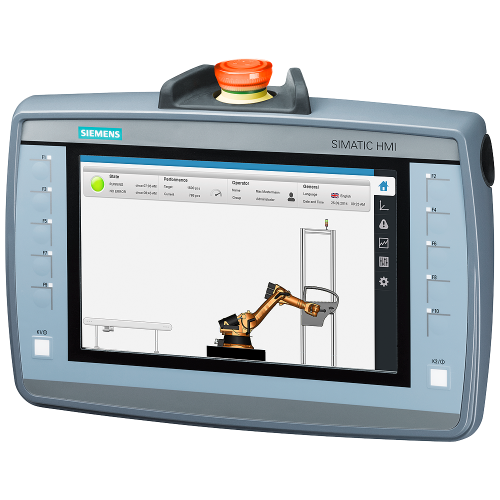

SIMATIC HMI KTP900F Mobile, 9.0" TFT display, 800x 480 pixel, 16m colors, key and touch operation, 10 function keys, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, Key-operated switch, acknowledgement button, 1 emergency stop/stop button configurable from WinCC Comfort V13 SP1
No alternatives available for this product.
Product
Manufacturer Material ID -
6AV2125-2JB23-0AX0
Net Weight -
1.77kg
Additional Product Information
Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503
Technical Specification
Number of interfaces PROFINET -
1
Width -
307.5 Millimetre
Height -
224 Millimetre
Depth -
91 Millimetre
Weight -
1.6 Kilogram
Screen diagonal -
9 inch
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces USB -
1
Number of colours of the display -
16777216
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of function buttons, programmable -
10
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Number of password levels -
50
Number of online languages -
32
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of HW-interfaces PROFINET -
1
Supply voltage DC -
19.2 Volt
Number of buttons with LED -
10
