IWLAN access point, IP30, IEEE 802.11n, 300Mbit/s, 2xRJ45, 2xR-SMA, PLUG slot

6GK57741FX000AA0

IWLAN access point, IP30, IEEE 802.11n, 300Mbit/s, 2xRJ45, 2xR-SMA, PLUG slot

Produced by Siemens

Availability Back Order

Price - £948.00

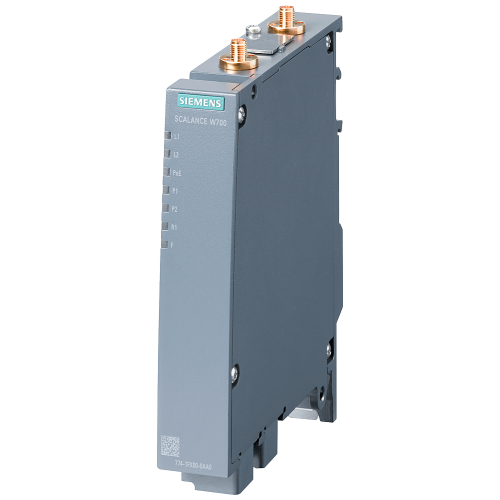

IWLAN Access Point, SCALANCE W774-1 RJ45, 1 radio, 2 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x RJ45 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, joint block, IP30, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN-W1-RJ-E2, scope of delivery: Manuals on CD-ROM, German/English, 1x joint block; for operation outside of USA/Israel . SCALANCE W774-1 RJ45 1x wireless, 2x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x RJ45 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, terminal block, IP30, plug slot, for operation outside the US/Israel. Scalable Access Point with one built-in wireless interface for setting up wireless connections with iFeatures (iPCF/iPCF-MC) via removable data storage medium (plug). 1 unit.The devices are suitable for installation in control cabinets in industrial plants, such as suspended monorails and automatic guided vehicle systems, and enable wireless commissioning in the plant.Implementation of simple and cost-effective wireless machine networking. Flat, compact aluminum housing, shock and vibration resistant, suitable for stringent mechanical requirements. 2x2 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 300 Mbps. Wireless access for service and maintenance, cost-effective replacement of cable lines, light and small design for efficient usage in automatic guided vehicle systems (AGV). Space-saving installation thanks to SIMATIC design. Optional activation of additional functions (iFeatures) via removable data storage medium (plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
No alternatives available for this product.
Product
Manufacturer Material ID -
6GK5774-1FX00-0AA0
Net Weight -
0.61kg
Additional Product Information
Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5A002A1A2 / ECCN: 5A002ENCU
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701
Technical Specification
Width -
0.026 Millimetre
Height -
0.147 Millimetre
Depth -
0.127 Millimetre
Max. data transmission rate -
300 Megabit per second
Number of ports 10/100 Mbps LAN -
2
Frequency band -
2.4 GHz and 5 GHz
Number of users -
28
