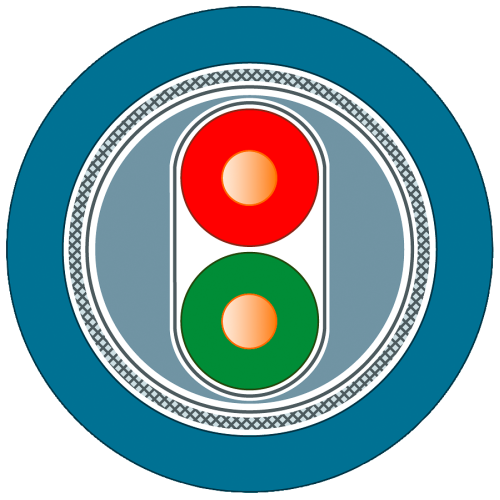

PROFIBUS FC process cable, haz. appl., blue jacket, 2-core shielded, sold by the meter

6XV18305EH10

PROFIBUS FC process cable, haz. appl., blue jacket, 2-core shielded, sold by the meter

Produced by Siemens

Availability In Stock

Price - £4.00
PROFIBUS FC Process Cable Bus cable for IEC 61158-2 Sheath color blue for Ex applications 2-core shielded Sold by the meter Delivery length max. 1000 m Minimum order 20 m
No alternatives available for this product.
Product
Manufacturer Material ID -
6XV1830-5EH10
Net Weight -
0.11kg
Additional Product Information
Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629
Technical Specification
Diameter conductor -
1.05 Millimetre
Conductor Diameter -
1.05 Millimetre
Permitted cable outer temperature during assembling/handling -
-20 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
1
Number of cores -
2
Outer diameter approx. -
8 Millimetre
Min. permitted bending radius, moving application with forced guidance -
80 Millimetre
Min. permitted bending radius, moving application/free movement -
80 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
80 Millimetre
