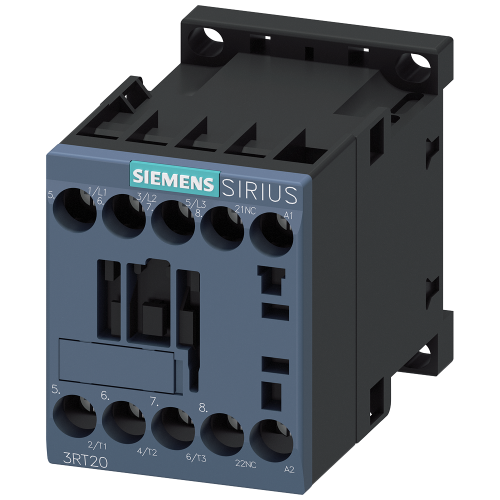

Contactor, AC-3, 9 A/4 kW/400 V, 3-pole, 110 V AC, 50/60 Hz, 1 NC, screw terminal

3RT20161AF02

Contactor, AC-3, 9 A/4 kW/400 V, 3-pole, 110 V AC, 50/60 Hz, 1 NC, screw terminal

Produced by Siemens

Availability In Stock

Price - £30.16
Power contactor, AC-3 9 A, 4 kW / 400 V 1 NC, 110 V AC, 50 / 60 Hz 3-pole, Size S00 screw terminal
No alternatives available for this product.
Product
Manufacturer Material ID -
3RT2016-1AF02
Net Weight -
0.23kg
Additional Product Information
Commodity Code -
85364900
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529
Technical Specification
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated operation power at AC-3, 400 V -
4 Kilowatt
Number of main contacts as normally open contact -
3
Number of auxiliary contacts as normally closed contact -
1
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-1, 400 V -
22 Ampere
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power NEMA -
3.677493749 Kilowatt
product_description -
4KW 3P CONTACTOR S00 01E 110VAC Kilowatt
