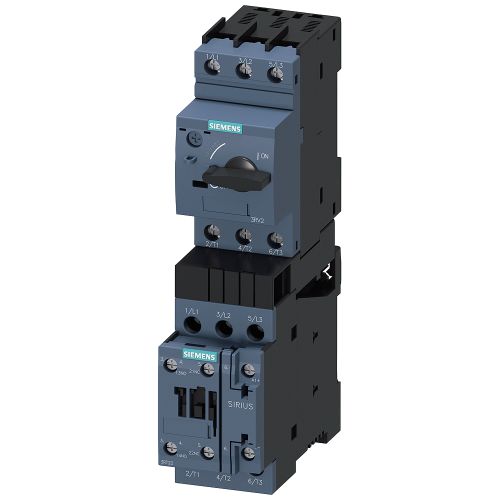

Load feeder, direct starter, S0, 4.5-6.3 A, 24 V DC, 150 kA

3RA21201GA240BB4

Load feeder, direct starter, S0, 4.5-6.3 A, 24 V DC, 150 kA

Produced by Siemens

Availability Back Order

Price - £165.04
Load feeder fuseless, Direct-on-line starting 400 V AC, Size S0 4.50...6.30 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor)
No alternatives available for this product.
Product
Manufacturer Material ID -
3RA2120-1GA24-0BB4
Net Weight -
1.02kg
Additional Product Information
Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529
Technical Specification
Width -
45 Millimetre
Height -
193 Millimetre
Depth -
107 Millimetre
Rated operation power at AC-3, 400 V -
2.2 Kilowatt
Number of command positions -
1
Rated operation current Ie -
6.3 Ampere
Overload release current setting -
4.5 Ampere
Rated control supply voltage at DC -
24 Volt
Rated operation current at AC-3, 400 V -
6.3 Ampere
Ambient temperature, upper operating limit -
60 Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
150000 Ampere
Rated conditional short-circuit current, type 2, 230 V -
150000 Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
65000 Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
30000 Ampere
