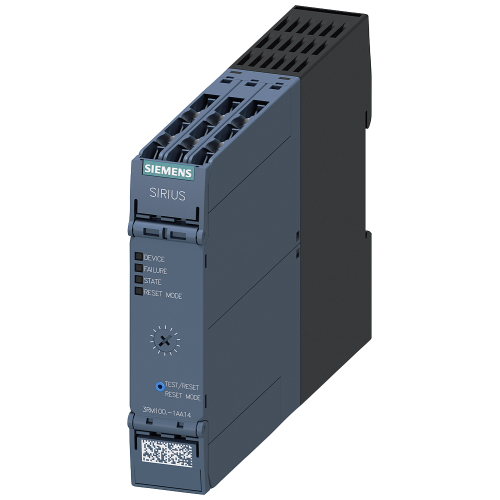

Direct-on-line starter, 0.1-0.5 A, 110-230 V AC, screw terminal

3RM10011AA14

Direct-on-line starter, 0.1-0.5 A, 110-230 V AC, screw terminal

Produced by Siemens

Availability Back Order

Price - £163.71
Direct starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 110-230 V AC, screw terminals Direct-on-line starter SIRIUS 3RM1 for functional switching of three-phase motors. Narrow design, multifunctional, with electronic overload protection, durable and energy-efficient hybrid switching technology, small number of different devices due to wide setting ranges, easy installation thanks to low wiring requirements, fast error diagnostics due to LED display, innovative enclosure concept, e.g. with labeled cover caps and removable terminals. Available as direct or reversing starter, optionally with ATEX certification and safety-related shutdown, with various motor current ranges, supply voltage types and connection technologies. An extensive range of accessories, such as device connector, fuse module, infeed system or sealable covers, completes the system. Getting started in minimum space - SIRIUS 3RM1 motor starters.
No alternatives available for this product.
Product
Manufacturer Material ID -
3RM1001-1AA14
Net Weight -
0.32kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521
Technical Specification
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Width -
23 Millimetre
Height -
100 Millimetre
Depth -
142 Millimetre
Rated operation power at AC-3, 400 V -
0.12 Kilowatt
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
1
Rated operation current Ie -
0.5 Ampere
Number of indicator lights -
4
Overload release current setting -
0.5 Ampere
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated control supply voltage at DC -
110 Volt
Rated operation power at AC-3, 230 V, 3-phase -
0.06 Kilowatt
Rated operation current at AC-3, 400 V -
0.5 Ampere
Ambient temperature, upper operating limit -
60 Degrees celsius
