Data manager for communication between PC U configuration via web browser

7KT1260

Data manager for communication between PC U configuration via web browser

Produced by Siemens

Availability Back Order

Price - £889.77

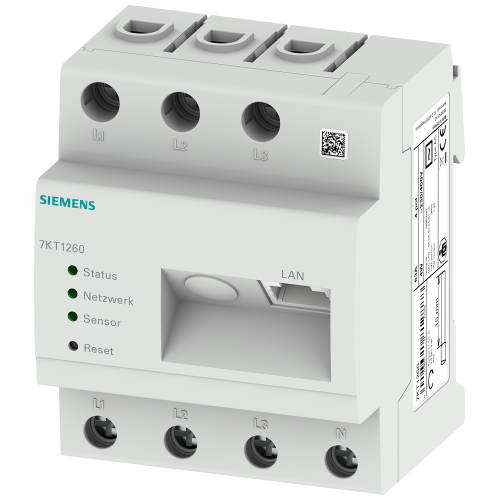

Data manager for communication between PC U Configuration via web browser, reading out via web browser, APP (SmartPhone, tablet), CSV. and Powermanager, data memory Multichannel current measuring device SENTRON 7KT PAC1200 for measurement of the power consumption in single-phase and three-phase systems, e.g. in industrial plants, commercial buildings, offices and apartments in apartment blocks. The 7KT PAC1200 multichannel measuring device enables precise, reproducible and reliable measurement of all important electrical characteristic values for infeed with up to 96 outgoing feeders or individual loads. It not only provides comprehensive information about your electrical installations and power distribution, but also key measured values for assessing the status of the plant. For further processing of measured data, the device can be very easily integrated in higher-level automation and energy management systems thanks to integrated Modbus TCP. With the existing web browser, it is possible to visualize and export recorded power and energy data. SENTRON PAC - specialists in measured value acquisition.
No alternatives available for this product.
Product
Manufacturer Material ID -
7KT1260
Net Weight -
0.35kg
Additional Product Information
Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
39121521
Technical Specification
Width -
70 Millimetre
Height -
85 Millimetre
Depth -
32.7 Millimetre
Supply voltage AC 50 Hz -
230 Volt
Supply voltage AC 60 Hz -
400 Volt
