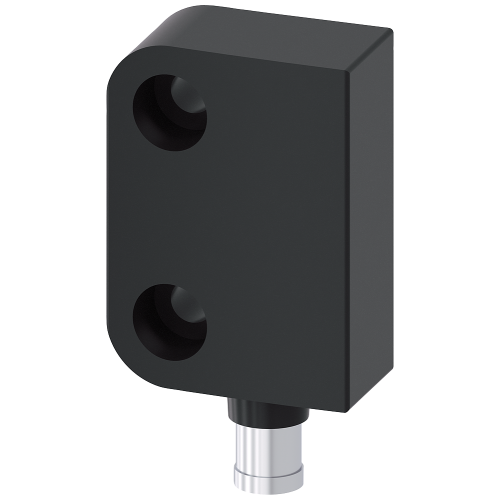

Magnet switch Switching element, rectangular small 26 x 36 mm, for door hinge on the right, Contact elements: Safety contacts 2 NC Signaling contact 1

3SE66273CA01

Magnet switch Switching element, rectangular small 26 x 36 mm, for door hinge on the right, Contact elements: Safety contacts 2 NC Signaling contact 1

Produced by Siemens

Availability Back Order

Price - £84.76
Magnet switch Switching element, rectangular small 26 x 36 mm, for door hinge on the right, Contact elements: Safety contacts 2 NC Signaling contact 1 NC, with 8 mm latching connection Connector 6-pole, without LED the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA
Product
Manufacturer Material ID -
3SE6627-3CA01
Net Weight -
0.03kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216
Technical Specification
Ambient temperature -
-25 Degrees celsius
Number of contact energized outputs with signalling function -
1
Protected switch distance OFF -
15 Millimetre
Protected switch distance ON -
5 Millimetre
Width sensor -
26 Millimetre
Height of sensor -
36 Millimetre
Length of sensor -
13 Millimetre
SIL according to IEC 61508 -
3
