SIRIUS cable-operated switch metal encl., 2x M20x1.5 2 NC/1 NO, latching EN ISO 13850

3SE71201BH00

SIRIUS cable-operated switch metal encl., 2x M20x1.5 2 NC/1 NO, latching EN ISO 13850

Produced by Siemens

Availability Back Order

Price - £179.35

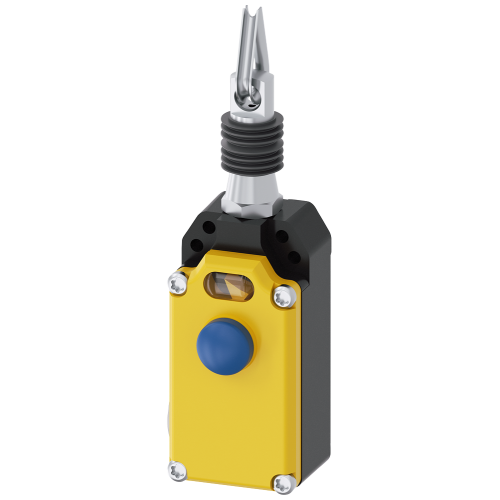

cable-operated switch metal enclosure, 2x M20 x 1.5 with yellow cover, 2 NC/1 NO, with latching EN ISO 13850 and button reset for wire lengths up to 5 m cable-operated switch SIRIUS 3SE7 for monitoring or for EMERGENCY STOP devices on system components particularly subject to hazards, e.g. conveyor belts. Using the cable-operated switches, control functions and EMERGENCY STOP can be implemented for any requirement and routing. The devices are easy to unlock and have integrated EMERGENCY STOP buttons as well as an LED signal display that is visible from a considerable distance. The switches can be used for the highest safety requirements specified by PL e or SIL 3. They are available with different cable lengths, combinations of switching elements, with LED display or EMERGENCY STOP mushroom pushbutton. The versions with latching are supplied with pressure, key or rotate-to-unlatch mechanisms. Steel cables with red plastic sheathing in various lengths with corresponding mounting accessories are available as accessories. Safety is a SIRIUS business.
No alternatives available for this product.
Product
Manufacturer Material ID -
3SE7120-1BH00
Net Weight -
0.41kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216
Technical Specification
Ambient temperature -
-25 Degrees celsius
Max. length of pull cord -
5 Metre
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
