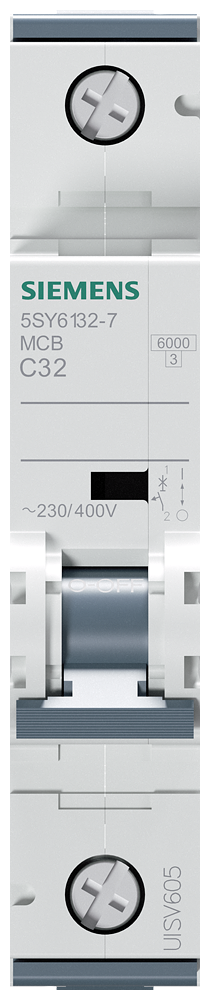

Miniature circuit breaker 230/400 V 6 kA, 1-pole, C, 32 A, D=70 mm

5SY61327

Miniature circuit breaker 230/400 V 6 kA, 1-pole, C, 32 A, D=70 mm

Produced by Siemens

Availability In Stock

Price - £15.33
Miniature circuit breaker 230/400 V 6kA, 1-pole, C, 32 A, D=70 mm
No alternatives available for this product.
Product
Manufacturer Material ID -
5SY6132-7
Net Weight -
0.15kg
Additional Product Information
Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Built-in depth -
70 Millimetre
Rated impulse withstand voltage Uimp -
4 Kilovolt
Recess depth -
70 Millimetre
Rated current -
32 Ampere
Rated voltage -
400 Volt
Frequency -
50 Hertz
Rated insulation voltage Ui -
440 Volt
Current limiting class -
3
Over voltage category -
3
Pollution degree -
3
Width in number of modular spacings -
1
Number of protected poles -
1
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Ambient temperature during operating -
-25 Degrees celsius
Number of poles (total) -
1
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
