SINAMICS G120D, IP65 / UL type 3, FSC, A, 3 AC 380-500 V, 7,50 kW

6SL35250PE275AA1

SINAMICS G120D, IP65 / UL type 3, FSC, A, 3 AC 380-500 V, 7,50 kW

Produced by Siemens

Availability Back Order

Price - £2,426.71

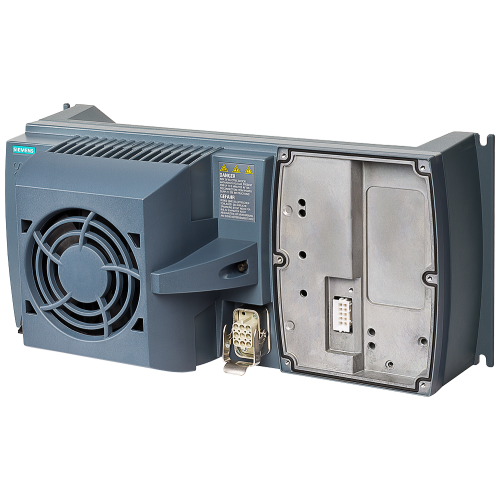

SINAMICS G120D Power Module PM250D with integrated Class A filter capable of energy recovery. 380-480 V 3 AC+10/-10% 47-63Hz Power high overload: 7.5kW at 200% 3s, 150% 60S, 100% 300S Ambient temperature -10 to +55 °C 210x 450x 220 (HxWxD), FSC Degree of protection IP65 without Control Unit
No accessories available for this product.
No alternatives available for this product.
Product
Manufacturer Material ID -
6SL3525-0PE27-5AA1
Net Weight -
8.67kg
Additional Product Information
Commodity Code -
85049099
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705
Technical Specification
Width -
445 Millimetre
Height -
210 Millimetre
Depth -
220 Millimetre
Mains voltage -
380 Volt
Mains frequency -
50/60 Hz
Number of phases output -
3
Number of phases input -
3
Max. output frequency -
650 Hertz
Max. output at linear load at rated output voltage -
7.5 Kilowatt
Max. output at quadratic load at rated output voltage -
7.5 Kilowatt
Relative symmetric net voltage tolerance -
-10 Percentage
Relative symmetric net frequency tolerance -
10 Percentage
Nominal output current I2N -
19 Ampere
