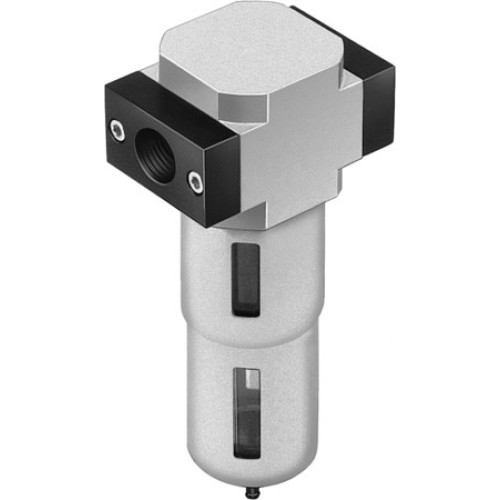

LFMA-1/4-D-MIDI-A Micro filter

Manufacturer's No: LFMA-1/4-D-MIDI-A     Manufacturer: Festo
LFMA-1/4-D-MIDI-A Micro filter

Availability Available to order

£234.76
  • Model: LFMA-1/4-D-MIDI-A Micro filter with bowl guard
  • Series: D, Size: Midi, Design: Fibre filter
  • Grade of filtration: 0.01 µm, Filter efficiency: 99.9999%
  • Condensate drain: Fully automatic
  • Operating pressure: 2 BAR to 12 BAR
  • Operating medium: Compressed air to ISO 8573-1:2010 [6:8:4], Inert gases
  • Air purity class at output: Compressed air to ISO 8573-1:2010 [1:7:2], Inert gases
  • Max. standard flow rate for clean air class: 740 L/min, Min. standard flow rate for clean air class: 240 L/min
  • Bowl guard: Metal bowl guard, Corrosion resistance class CRC: 2
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Media temperature: 1.5°C to 60°C, Ambient temperature: -10°C to 60°C
  • Residual oil content: 0.01 mg/m³
  • Type of mounting: In-line installation, With accessories, Either
  • Mounting position: Vertical +/-5°
  • Pneumatic connection, port 1 & 2: G1/4
  • Material housing: Die-cast zinc, Material filter: Borosilicate fibre, Material bowl: PC
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
LFMA-1/4-D-MIDI-A
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
HU
UNSPSC -
41111926
