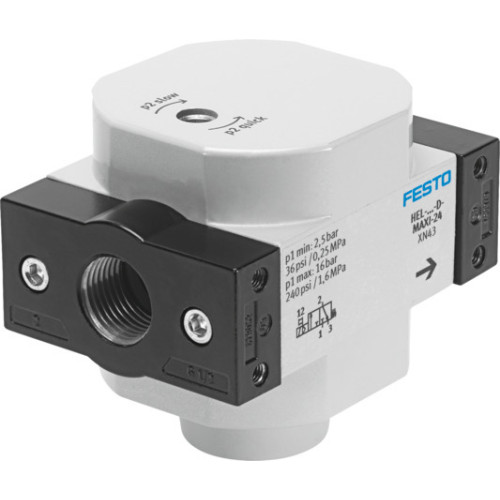

HEL-1/2-D-MAXI On/off valve

Manufacturer's No: HEL-1/2-D-MAXI     Manufacturer: Festo
HEL-1/2-D-MAXI On/off valve

Availability Available to order

£164.97
  • Valve function: 2/2-way, closed, monostable
  • Operating pressure: 0.3 MPa, 1.6 MPa, 3 bar, 16 bar
  • Standard nominal flow rate: 5600 L/min
  • Operating medium: Compressed air, inert gases
  • Media temperature: -10°C to 60°C
  • Ambient temperature: -10°C to 60°C
  • Product weight: 394 g
  • Type of mounting: In-line installation
  • Pneumatic connection ports: G1/2
  • Material seals: NBR

Read more

  • Material housing: Die-cast aluminium
  • Corrosion resistance class: 2 (Moderate corrosion stress)
  • Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Design: Piston gate valve
  • Type of reset: Mechanical spring
  • Type of piloting: Direct
  • Flow direction: Non-reversible
  • Exhaust-air function: Throttleable
  • Type of actuation: Pneumatic
  • Sealing principle: Soft
  • Assembly position: Any
  • Manual override: None
  • Symbol: 991513
  • Note on materials: RoHS-compliant
  • Note on operating and pilot medium: Lubricated operation possible (lubricated operation always required)


Product

Manufacturer Material ID -
HEL-1/2-D-MAXI
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
HU
UNSPSC -
41111926
