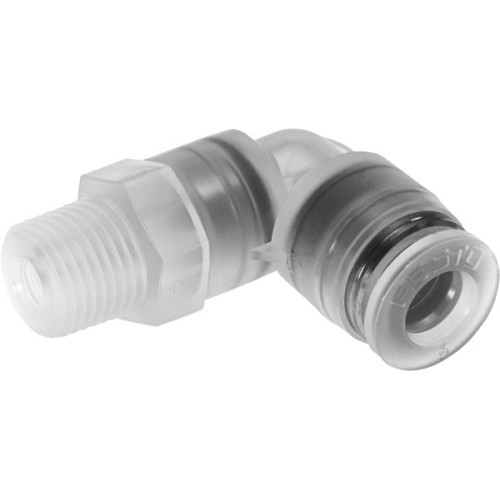

NPQP-L-R18-Q6-FD-P10 Push-in L-fitting

Manufacturer's No: NPQP-L-R18-Q6-FD-P10     Manufacturer: Festo
NPQP-L-R18-Q6-FD-P10 Push-in L-fitting

Availability Available to order

£8.99
  • Push-in L-fitting NPQP-L-R18-Q6-FD-P10
  • Resistant to various media
  • L-shape design with external hexagon
  • Male thread R1/8 for tubing O.D. 6 mm
  • Package quantity: 10 pieces
  • Food-safe material
  • Nominal size: 3.3 mm
  • Temperature-dependent operating pressure: -0.95 to 10 BAR
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Lubricated operation possible

Read more

  • Very high corrosion resistance (CRC: 4)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Suitable for food applications
  • Ambient temperature range: -20 to 60°C
  • Product weight: 5 g
  • Mounting type: External hexagon, size 12 mm
  • Pneumatic connection port 1: Male thread R1/8
  • Pneumatic connection port 2: For tubing O.D. 6 mm
  • RoHS-compliant materials
  • Housing material: PP
  • Tubing clamp component material: High-alloy stainless steel


Product

Manufacturer Material ID -
NPQP-L-R18-Q6-FD-P10
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
39174000
Country of Origin -
JP
UNSPSC -
41111926

Technical Specification

Max. output current -
- Milliampere
Type of analogy output -
UN
Blind zone -
- Millimetre
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Standard for interfaces -
UN
Relative linearity deflection -
- Percentage
Relative repeat accuracy -
- Percentage
Supply voltage -
- Volt
Material active area of sensor -
UN
Material of cable sheath -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Adjustable distance -
- Millimetre
Material housing -
Brass
Diameter sensor -
18 Millimetre
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Housing material -
Brass
Length of sensor -
75 Millimetre
Measuring range length -
30 Millimetre
No load current -
50 Milliampere
Switching frequency -
8 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Voltage type -
DC
Festo

Availability Available to order

£8.99
