1590010

Inductive Linear Position Sensor

Manufacturer's No: LI200P0-Q25LM0-ESG25X3-H1181     Manufacturer: Turck Banner
Inductive Linear Position Sensor

Availability On Request

£491.88
  • Inductive Linear Position Sensor
  • Operating voltage: 15-30 VDC
  • Measuring range: 200 mm
  • Rectangular design made of aluminum/plastic
  • Versatile mounting options
  • LED indicator for measuring range
  • Immune to electromagnetic interferences
  • Extremely short blind zones
  • Resolution: 0.001 mm
  • Male M12 x 1, 8-pin connection

Read more

  • SSI output with 25-bit Gray-coded data
  • SSI clock rate: 62.5 kHz to 1 MHz


Product

Manufacturer Material ID -
LI200P0-Q25LM0-ESG25X3-H1181
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
73182900
Country of Origin -
DE
UNSPSC -
20101617

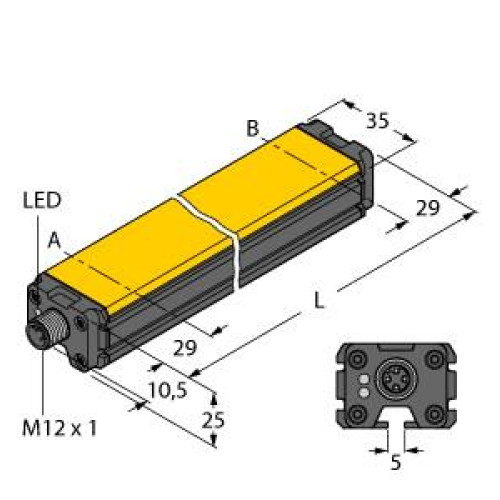

Technical Specification

Depth -
10 Millimetre
Height -
53 Millimetre
Length -
258 Millimetre
Material -
Steel
Type of accessory/spare part -
Mounting angle bracket
Voltage type -
DC
Width -
25 Millimetre
