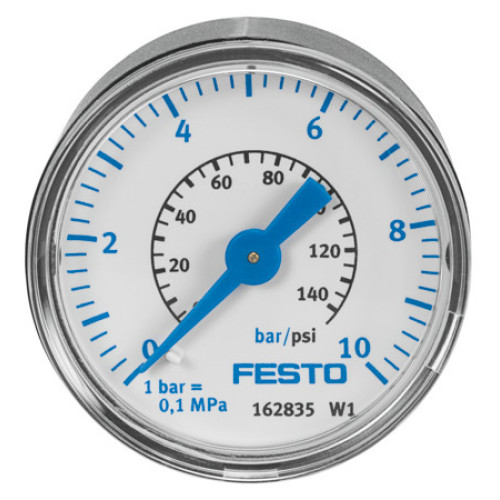

MA-40-10-G1/4-EN Pressure gauge

Manufacturer's No: MA-40-10-G1/4-EN     Manufacturer: Festo
MA-40-10-G1/4-EN Pressure gauge

Availability Available to order

£14.38
  • Pressure gauge MA-40-10-G1/4-EN
  • Nominal size: 40
  • Measurement range: 0-10 bar / 0-145 psi
  • Male thread: G1/4 with PTFE sealing ring
  • Material: Brass
  • Double scale: inner scale in bar, outer scale in psi
  • Measurement accuracy class: 2.5
  • Conforms to standard: EN 837-1
  • Operating pressure: 0-10 bar / 0-145 psi
  • Operating medium: Inert gases, Neutral fluids

Read more

  • Alternating load factor: 0.66
  • Degree of protection: IP43
  • Media temperature: -20°C to 60°C
  • Ambient temperature: -20°C to 60°C
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • RoHS-compliant materials
  • Pneumatic connection: G1/4
  • Weight: 70g
  • Scale: Double scale with bar (outside scale) and psi (inner scale)


Product

Manufacturer Material ID -
MA-40-10-G1/4-EN
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
DE
UNSPSC -
41111926
