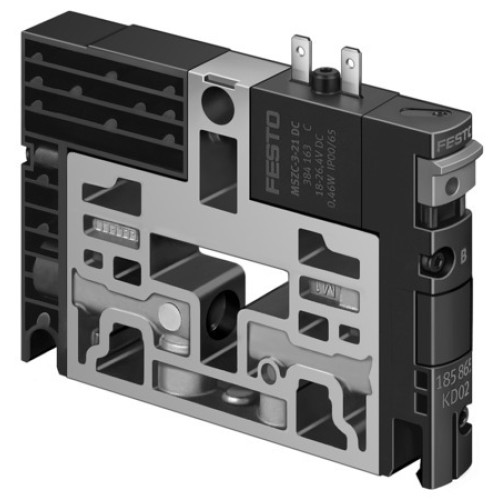

CPV14-M1H-V95-1/8 Vacuum generator

Manufacturer's No: CPV14-M1H-V95-1/8     Manufacturer: Festo
CPV14-M1H-V95-1/8 Vacuum generator

Availability Available to order

£183.22
  • Vacuum generator model: CPV14-M1H-V95-1/8
  • Compatible with valve terminal CPV
  • Nominal size of Laval nozzle: 0.95 mm
  • Ejector characteristic: High vacuum
  • Operating pressure range: 3 - 8 bar
  • Maximum vacuum level: 85%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature range: 0°C to 50°C

Read more

  • Product weight: 98 g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole
  • Pneumatic connections at ports 1 and 3: Sub-base
  • Vacuum connection size: G1/8
  • RoHS-compliant materials used
  • Housing material: Die-cast aluminium


Product

Manufacturer Material ID -
CPV14-M1H-V95-1/8
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
DE
UNSPSC -
41111926
