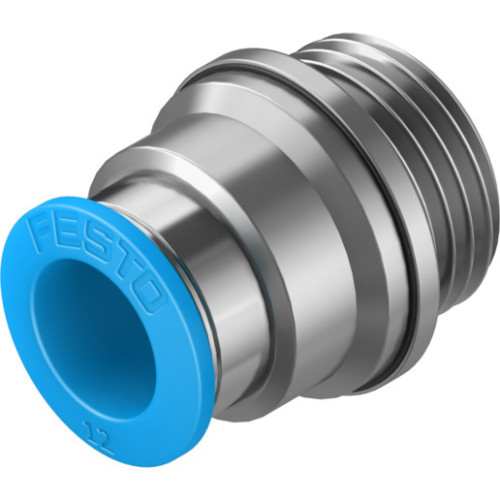

QS-G1/2-12-I Push-in fitting

Manufacturer's No: QS-G1/2-12-I     Manufacturer: Festo
QS-G1/2-12-I Push-in fitting

Availability Available to order

£6.20
  • Push-in fitting QS-G1/2-12-I
  • Straight design with internal hexagon
  • Male thread G1/2 for tubing O.D. 12mm
  • Operating pressure range: -0.095 MPa to 6 bar
  • Temperature-dependent operating pressure: -0.095 MPa to 203 psi
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Ambient temperature: -10°C to 80°C
  • Nominal torque: 26 Nm with ± 20% tolerance
  • Product weight: 33 g

Read more

  • Material: Housing - Brass, nickel-plated; Release ring - POM; Tubing seal - NBR; Tubing clamp component - High-alloy stainless steel
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Colour of release ring: Blue
  • RoHS-compliant materials
  • Note: Lubricated operation possible; G-thread for water requires sealing ring type OL as additional accessory


Product

Manufacturer Material ID -
QS-G1/2-12-I
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
TW
UNSPSC -
41111926
Festo

Availability Available to order

£6.20
