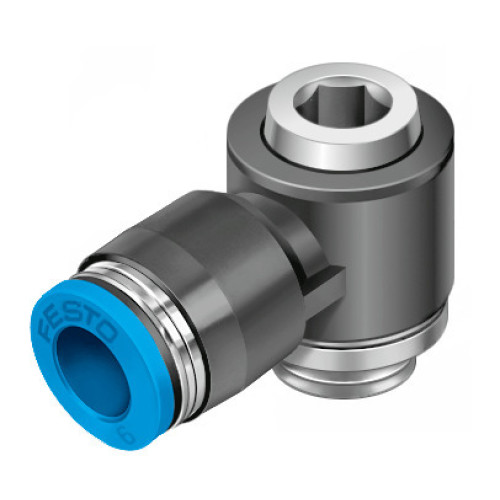

QSLV-G3/8-8-I Push-in L-fitting

Manufacturer's No: QSLV-G3/8-8-I     Manufacturer: Festo
QSLV-G3/8-8-I Push-in L-fitting

Availability Available to order

£3.38
  • Push-in L-fitting QSLV-G3/8-8-I
  • L-shape design with internal hexagon
  • Male thread G3/8 for tubing O.D. 8mm
  • Operating pressure range: -0.095 MPa to 6 bar (-13.775 psi to 87 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 14 bar (-13.775 psi to 203 psi)
  • Max. operating pressure for water: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cleanroom class: Class 4 according to ISO 14644-1
  • Ambient temperature range: -10°C to 80°C

Read more

  • Nominal torque: 15.5 Nm with ±20% tolerance
  • Product weight: 33g
  • Material: Housing - PBT, Hollow bolt - Nickel-plated brass, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • RoHS-compliant materials
  • Colour of release ring: Blue
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Design based on push-pull principle
  • Mounting position: Optional
  • Package quantity: 10 pieces
  • Nominal size: 4.2mm
  • Type of seal on screwed plug: Sealing ring
  • Type of mounting: Internal hexagon, size 8mm
  • Note: G-thread for water only possible with sealing ring type OL as additional accessory
  • Note: Lubricated operation possible


Product

Manufacturer Material ID -
QSLV-G3/8-8-I
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
8544 4290
Country of Origin -
JP
UNSPSC -
41111926
Festo

Availability Available to order

£3.38
