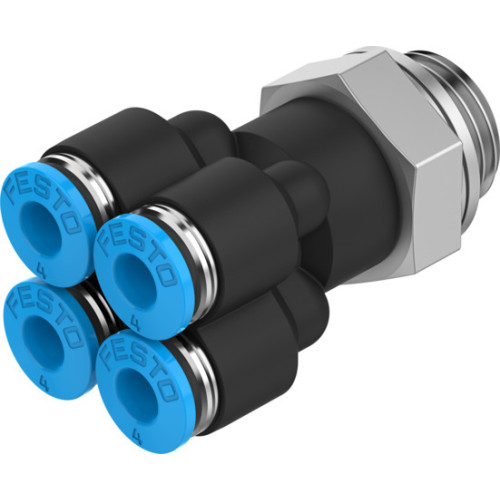

QSQ-G1/8-4 Multiple distributor

Manufacturer's No: QSQ-G1/8-4     Manufacturer: Festo
QSQ-G1/8-4 Multiple distributor

Availability Available to order

£9.07
  • Multiple distributor with straight design
  • 4 outlets with male thread G1/8 for tubing O.D. 4mm
  • Operating pressure range: -0.095 MPa to 6 bar (-13.775 PSI to 87 PSI)
  • Temperature-dependent operating pressure range: -0.095 MPa to 14 bar (-13.775 PSI to 203 PSI)
  • Suitable for water up to 0.6 MPa at 0-50°C
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -10°C to 80°C
  • Nominal torque: 7 Nm with ±20% tolerance
  • Lightweight at 20g

Read more

  • Pneumatic connection: Male thread G1/8 for port 1, tubing outside diameter of 4mm for port 2
  • Blue release ring, RoHS-compliant materials
  • Housing material: PBT, release ring material: POM, tubing seal material: NBR, tubing clamp component material: High-alloy stainless steel


Product

Manufacturer Material ID -
QSQ-G1/8-4
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
TW
UNSPSC -
41111926
