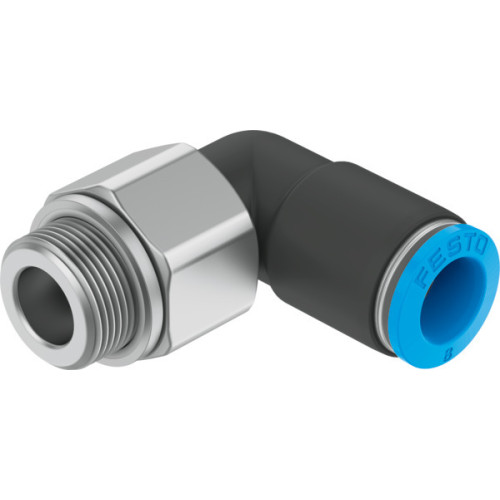

QSRL-G3/8-8 Push-in L-fitting, rotatable

Manufacturer's No: QSRL-G3/8-8     Manufacturer: Festo
QSRL-G3/8-8 Push-in L-fitting, rotatable

Availability Available to order

£26.93
  • Product: QSRL-G3/8-8 Push-in L-fitting, rotatable
  • Design: L-shape, rotatable
  • Male thread size: G3/8
  • For tubing outer diameter: 8 mm
  • Operating pressure range: -0.095 MPa to 6 bar (temperature-dependent)
  • Temperature-dependent operating pressure range: -0.095 MPa to 14 bar
  • Max. rotational speed: 400 RPM
  • Operating medium: Compressed air (ISO 8573-1:2010)
  • Corrosion resistance class: CRC 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: 0°C to 60°C
  • Max. radial torque: 0.015 Nm
  • Nominal torque: 15.5 Nm
  • Product weight: 41 g
  • Mounting: External hexagon, A/F 19 mm
  • Pneumatic connection port 1: Male thread G3/8
  • Pneumatic connection port 2: For tubing OD 8 mm
  • Release ring color: Blue
  • Material: Screwed plug - Nickel-plated brass, Housing - PBT, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel
  • RoHS-compliant materials
  • Note: Lubricated operation possible


Product

Manufacturer Material ID -
QSRL-G3/8-8
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
Festo

Availability Available to order

£26.93
