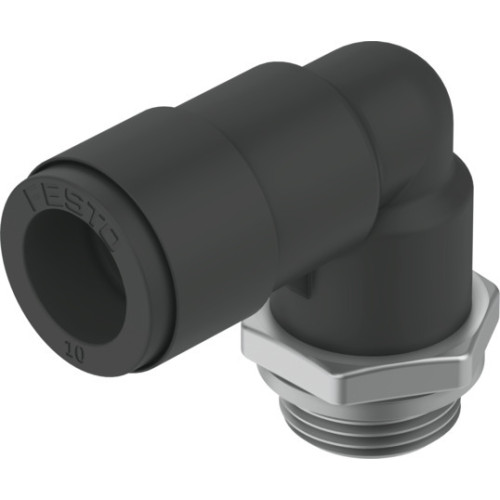

QSL-V0-G1/4-8 Push-in L-fitting

Manufacturer's No: QSL-V0-G1/4-8     Manufacturer: Festo
QSL-V0-G1/4-8 Push-in L-fitting

Availability Available to order

£9.36
  • Push-in L-fitting QSL-V0-G1/4-8
  • Resistant to welding spatter
  • L-shape design with external hexagon
  • Male thread G1/4 for tubing O.D. 8 mm
  • Fire test material: UL94 V-0 for housing and releasing ring
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 to 10 bar, -13.775 to 145 psi)
  • Maximum water pressure: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 2
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: 0°C to 60°C
  • Nominal torque: 9 Nm with ±20% tolerance
  • Product weight: 25 g
  • Pneumatic connection: Male thread G1/4 for port 1, tubing O.D. 8 mm for port 2
  • Release ring color: Black
  • Materials: Nickel-plated brass screwed plug, RoHS-compliant PBT housing, Aluminium and PBT thread seal, PBT release ring, NBR tubing seal, High-alloy stainless steel and brass tubing clamp component
  • Mounting: External hexagon, size 17 mm
  • Lubricated operation possible


Product

Manufacturer Material ID -
QSL-V0-G1/4-8
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
