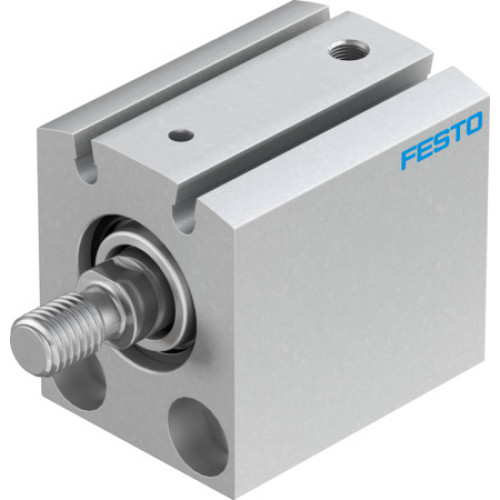

AEVC-20-10-A-P-A Short-stroke cylinder

Manufacturer's No: AEVC-20-10-A-P-A     Manufacturer: Festo
AEVC-20-10-A-P-A Short-stroke cylinder

Availability Available to order

£73.325
  • Short-stroke cylinder AEVC-20-10-A-P-A
  • Stroke: 10 mm
  • Piston diameter: 20 mm
  • Spring return force (retracted): 10 N
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar, 21.75 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi) advance stroke: 170 N
  • Moving mass: 29 g
  • Product weight: 136 g
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: M5
  • Material: RoHS-compliant
  • Material cover: Wrought aluminium alloy, anodised
  • Material seals: TPE-U(PU)
  • Material housing: Wrought aluminium alloy, anodised
  • Material piston rod: High-alloy steel


Product

Manufacturer Material ID -
AEVC-20-10-A-P-A
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
DE
UNSPSC -
41111926
