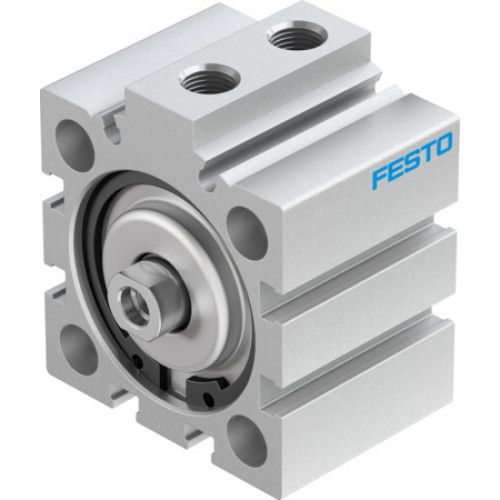

ADVC-40-10-I-P Short-stroke cylinder

Manufacturer's No: ADVC-40-10-I-P     Manufacturer: Festo
ADVC-40-10-I-P Short-stroke cylinder

Availability Available to order

£111.1875
  • Short-stroke cylinder ADVC-40-10-I-P
  • Stroke: 10 mm
  • Piston diameter: 40 mm
  • Based on standards: ISO 6431, Hole pattern, VDMA 24562
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Mounting position: Any
  • Mode of operation: Double-acting
  • Design: Piston, Piston rod
  • Position detection: Without
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 686 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 754 N
  • Moving mass: 74 g, Moving mass for 0 mm stroke: 64 g, Additional moving mass per 10 mm stroke: 10 g
  • Product weight: 255 g, Basic weight for 0 mm stroke: 226 g, Additional weight per 10 mm stroke: 28 g
  • Type of mounting: With through-hole, With accessories, Either
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, Wrought aluminium alloy (cover, housing), Anodised (cover, housing), NBR (seals), TPE-U(PU) (seals), High-alloy steel (piston rod)


Product

Manufacturer Material ID -
ADVC-40-10-I-P
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
9031 9000
Country of Origin -
DE
UNSPSC -
41111926
Festo

Availability Available to order

£111.1875
