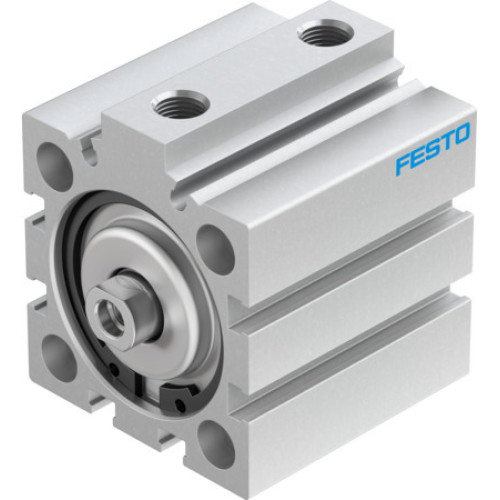

ADVC-40-25-I-P Short-stroke cylinder

Manufacturer's No: ADVC-40-25-I-P     Manufacturer: Festo
ADVC-40-25-I-P Short-stroke cylinder

Availability Available to order

£121.1125
  • Short-stroke cylinder ADVC-40-25-I-P
    • Stroke: 25 mm
    • Piston diameter: 40 mm
    • Cushioning: Flexible cushioning rings/plates at both ends
    • Mounting position: Any
    • Mode of operation: Double-acting
    • Design: Piston, Piston rod
    • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
    • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
    • Corrosion resistance class CRC: 1 - Low corrosion stress
    • LABS (PWIS) conformity: VDMA24364-B1/B2-L
    • Ambient temperature: -20°C to 80°C
    • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 686 N
    • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 754 N
    • Moving mass: 89 g, 64 g for 0 mm stroke, additional 10 g per 10 mm stroke
    • Product weight: 325 g, 226 g for 0 mm stroke, additional 28 g per 10 mm stroke
    • Type of mounting: With through-hole, with accessories, either
    • Pneumatic connection: G1/8
    • Material:
      • Cover: Wrought aluminium alloy, anodised
      • Seals: NBR, TPE-U(PU)
      • Housing: Wrought aluminium alloy, anodised
      • Piston rod: High-alloy steel


Product

Manufacturer Material ID -
ADVC-40-25-I-P
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
9031 9000
Country of Origin -
DE
UNSPSC -
41111926
