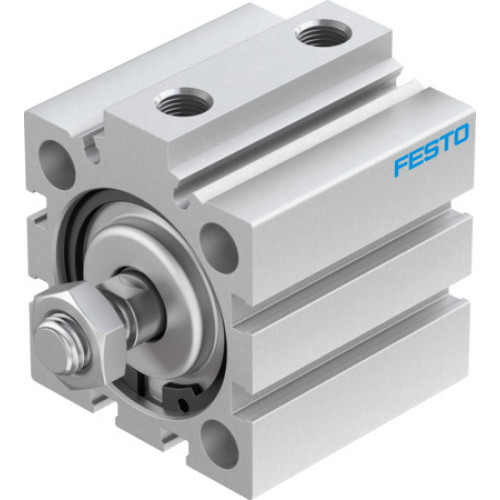

ADVC-40-15-A-P-A Short-stroke cylinder

Manufacturer's No: ADVC-40-15-A-P-A     Manufacturer: Festo
ADVC-40-15-A-P-A Short-stroke cylinder

Availability Available to order

£127.10
  • Short-stroke cylinder ADVC-40-15-A-P-A
  • Stroke: 15 mm
  • Piston diameter: 40 mm
  • Based on standards: ISO 6431, Hole pattern, VDMA 24562
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Mounting position: Any
  • Mode of operation: Double-acting
  • Design: Piston with piston rod
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke - 686 N, Advance stroke - 754 N
  • Moving mass: 76 g (61 g for 0 mm stroke, additional 10 g per 10 mm stroke)
  • Product weight: 344 g (275 g for 0 mm stroke, additional 26 g per 10 mm stroke)
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, cover - Wrought aluminium alloy (anodised), seals - TPE-U(PU), housing - Wrought aluminium alloy (anodised), piston rod - High-alloy steel


Product

Manufacturer Material ID -
ADVC-40-15-A-P-A
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
9031 9000
Country of Origin -
DE
UNSPSC -
41111926
