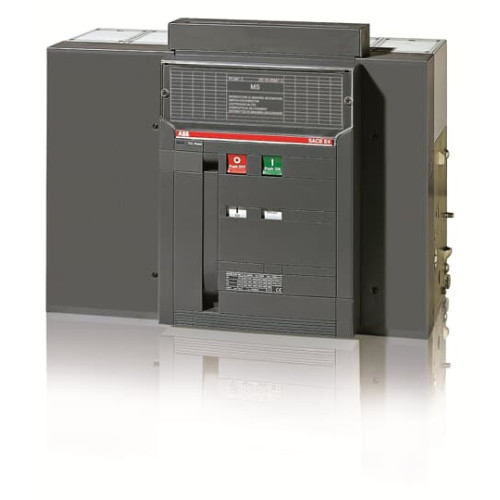

1SDA059082R1

E4H/E MS 4000 3p 750V DC F HR new

Manufacturer's No: 1SDA059082R1     Manufacturer: ABB
E4H/E MS 4000 3p 750V DC F HR new

Availability On Request

£37,349.79
SACE EMAX C.BREAKER SWITCH-DISCONNECTOR E4H/E MS 4000A 750V DC THREE-POLE FIXED WITH TERMINALES REAR HORIZONTAL NEW


Product

Manufacturer Material ID -
1SDA059082R1
Net Weight -
81.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Interlockable -
Colour control element -
Other
Degree of protection (IP), front side -
IP30
Degree of protection (NEMA) -
Other
Depth -
302 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
418 Millimetre
Max. rated operation voltage Ue AC -
750 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
0
Rated operating voltage -
750 Volt
Rated permanent current at AC-21, 400 V -
4000 Ampere
Rated permanent current at AC-23, 400 V -
4000 Ampere
Rated permanent current Iu -
4000 Ampere
Rated short-time withstand current lcw -
65 kiloampere
Suitable for distribution board installation -
Type of control element -
Push button
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Voltage release optional -
Width -
566 Millimetre
