1SDA063074R1

T7L 1600 PR231/P LS/I In=1600A 3p F F M

Manufacturer's No: 1SDA063074R1     Manufacturer: ABB
T7L 1600 PR231/P LS/I In=1600A 3p F F M

Availability Back Order

£12,708.40

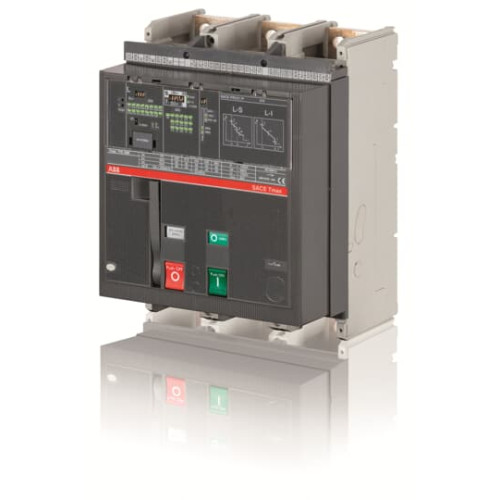

C.BREAKER TMAX T7L 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1600


Product

Manufacturer Material ID -
1SDA063074R1
Net Weight -
11.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Degree of protection (IP) -
IP20
Overload release current setting -
640 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
120 kiloampere
Adjustment range undelayed short-circuit release -
1600 Ampere
Adjustment range short-term delayed short-circuit release -
1600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
77 Watt
Rated permanent current Iu -
1600 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£12,708.40
