1SDA063410R1

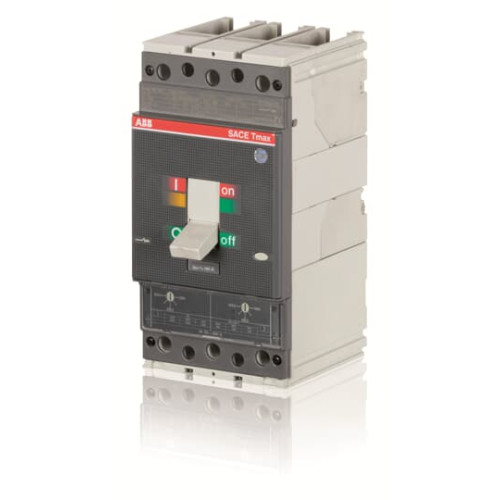

T4V 250 TMD 32-320 3p F FC 1150V AC

Manufacturer's No: 1SDA063410R1     Manufacturer: ABB
T4V 250 TMD 32-320 3p F FC 1150V AC

Availability Available to order

£1,870.84
  • Product: Circuit Breaker TMAX T4V 250
  • Voltage: 1150V AC
  • Configuration: Three-pole
  • Terminals: Front terminals for Cu cable
  • Thermal Magnetic Release: TMD R 32-320 A
  • Current Rating: 320A


Product

Manufacturer Material ID -
1SDA063410R1
Net Weight -
2.35kg

Additional Product Information

Commodity Code -
85352100
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Degree of protection (IP) -
UN
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
- kiloampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Adjustment range undelayed short-circuit release -
- Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
3.7 Watt
Rated permanent current Iu -
32 Ampere
Rated voltage -
1150 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Available to order

£1,870.84
