1SDA066690R1

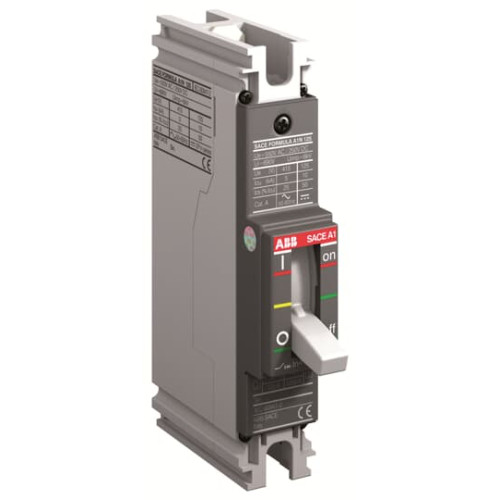

A1N 125 TMF 50-500 1p F F

Manufacturer's No: 1SDA066690R1     Manufacturer: ABB
A1N 125 TMF 50-500 1p F F

Availability Back Order

£153.14
A1N 125 TMF 50-500 1p F F


Product

Manufacturer Material ID -
1SDA066690R1
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
UNSPSC -
32151705

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
5 kiloampere
Adjustment range undelayed short-circuit release -
500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
1
Overload release current setting -
500 Ampere
Position of connection for main current circuit -
Front
Power loss -
5.5 Watt
Rated permanent current Iu -
50 Ampere
Rated voltage -
415 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£153.14
