1SDA067049R1

XT2N 160 MA 20 Im=120...280 3p F F

Manufacturer's No: 1SDA067049R1     Manufacturer: ABB
XT2N 160 MA 20 Im=120...280 3p F F

Availability Back Order

£331.30

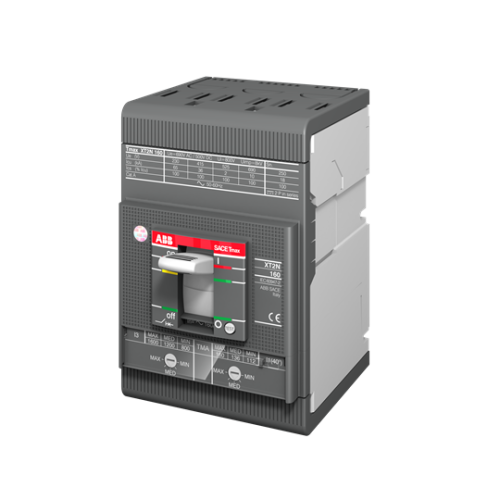

C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 20 A I3=120...280 A


Product

Manufacturer Material ID -
1SDA067049R1
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Overload release current setting -
- Ampere
Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
120 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
1.62 Watt
Rated permanent current Iu -
20 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£331.30
