1SDA067576R1

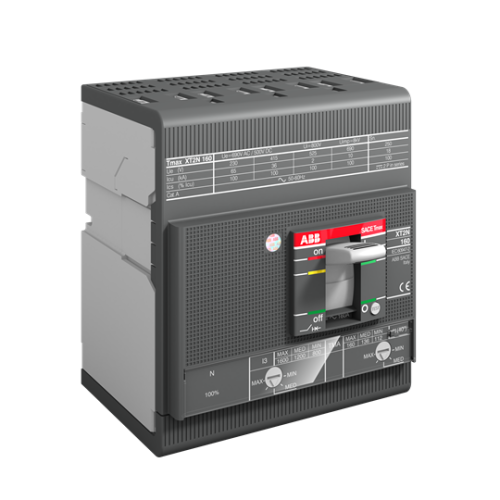

XT2S 160 TMA 50-500 4p F F

Manufacturer's No: 1SDA067576R1     Manufacturer: ABB
XT2S 160 TMA 50-500 4p F F

Availability On Request

£605.54
  • Model: XT2S 160 TMA
  • Type: Circuit Breaker
  • Configuration: Fixed Four-Pole
  • Terminals: Front
  • Release Type: Thermomagnetic
  • Current Rating: 50-500 A
  • Number of Poles: 4
  • Operational Current Range: 250-500 A


Product

Manufacturer Material ID -
1SDA067576R1
Net Weight -
1.55kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Adjustment range undelayed short-circuit release -
300 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
35 Ampere
Position of connection for main current circuit -
Front
Power loss -
4.09 Watt
Rated permanent current Iu -
50 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability On Request

£605.54
