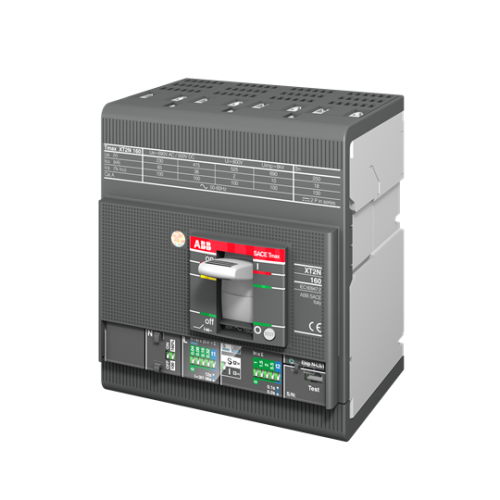

1SDA068015R1

XT2V 160 Ekip I In=160A 4p F F InN=100%

Manufacturer's No: 1SDA068015R1     Manufacturer: ABB
XT2V 160 Ekip I In=160A 4p F F InN=100%

Availability Available to order

£1,500.19
  • Model: XT2V 160
  • Current Rating: 160A
  • Number of Poles: 4
  • Trip Unit: Fixed, Solid-State
  • Front Terminals
  • Fully Rated Neutral
  • Suitable for 100% Rated Current
  • Circuit Breaker Type: Tmax XT2V
  • AC Operation


Product

Manufacturer Material ID -
1SDA068015R1
Net Weight -
1.60kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Overload release current setting -
- Ampere
Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range undelayed short-circuit release -
160 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Position of connection for main current circuit -
Front
Power loss -
10.8 Watt
Rated permanent current Iu -
160 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
