1SDA068111R1

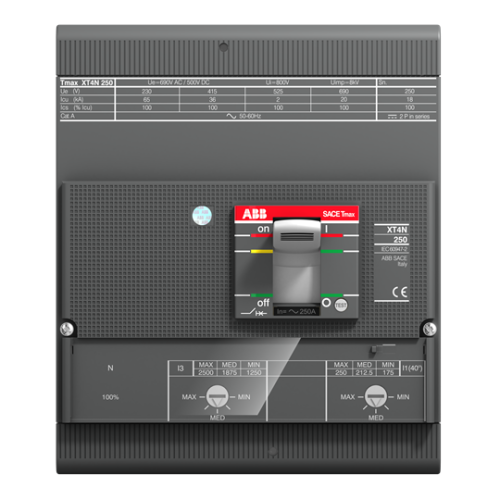

XT4N 250 TMA 250-2500 4p F F InN=100%

Manufacturer's No: 1SDA068111R1     Manufacturer: ABB
XT4N 250 TMA 250-2500 4p F F InN=100%

Availability Back Order

£1,172.88
  • Model: XT4N 250 TMA 250-2500
  • Configuration: 4 poles
  • Front terminals
  • Thermomagnetic release
  • Current rating: 1250A to 2500A
  • Fully rated neutral


Product

Manufacturer Material ID -
1SDA068111R1
Net Weight -
3.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
UN
Adjustment range short-term delayed short-circuit release -
- Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
1250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
175 Ampere
Position of connection for main current circuit -
Front
Power loss -
16.44 Watt
Rated permanent current Iu -
250 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£1,172.88
