1SDA068157R1

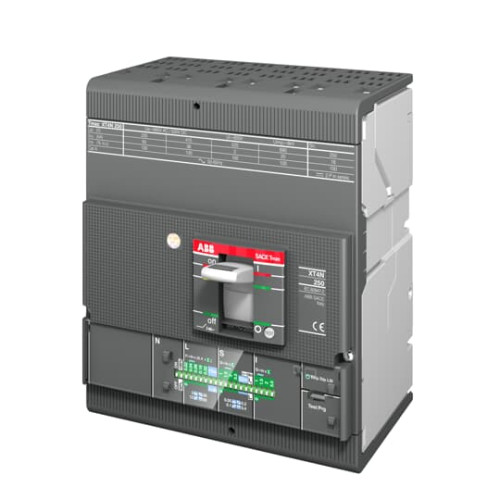

XT4N 250 Ekip LSI In=250A 4p F F

Manufacturer's No: 1SDA068157R1     Manufacturer: ABB
XT4N 250 Ekip LSI In=250A 4p F F

Availability Back Order

£2,373.83
  • Model: XT4N 250
  • Current Rating: 250A
  • Number of Poles: 4
  • Trip Unit: Ekip LSI
  • Trip Unit Rating: 250A
  • Release Type: Solid-state
  • Terminals: Front
  • Circuit Breaker Type: Fixed
  • Suitable for AC applications


Product

Manufacturer Material ID -
1SDA068157R1
Net Weight -
3.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
UN
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range short-term delayed short-circuit release -
250 Ampere
Adjustment range undelayed short-circuit release -
250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
100 Ampere
Position of connection for main current circuit -
Front
Power loss -
16.4 Watt
Rated permanent current Iu -
250 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
