1SDA068208R1

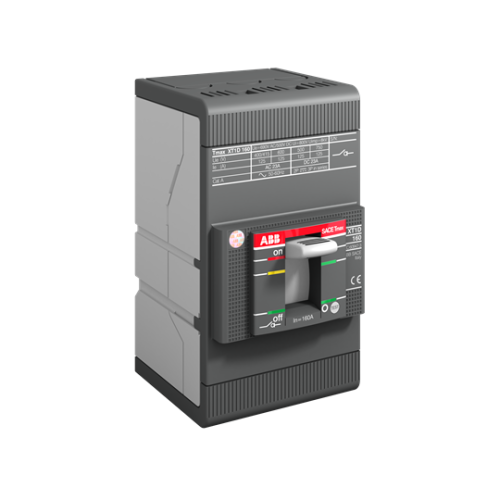

XT1D 160 3p F F

Manufacturer's No: 1SDA068208R1     Manufacturer: ABB
XT1D 160 3p F F

Availability On Request

£405.50
SWITCH-DISCONNECTOR TMAX XT1D 160 FIXED THREE-POLE WITH FRONT TERMINALS


Product

Manufacturer Material ID -
1SDA068208R1
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Type of control element -
Toggle
Colour control element -
White
Degree of protection (IP), front side -
IP20
Depth -
70 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
130 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operating voltage -
0 Volt
Rated permanent current at AC-21, 400 V -
160 Ampere
Rated permanent current Iu -
160 Ampere
Rated short-time withstand current lcw -
2 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Width -
76.2 Millimetre
