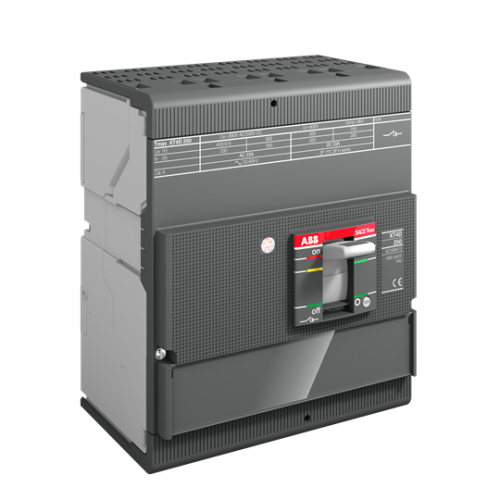

1SDA068213R1

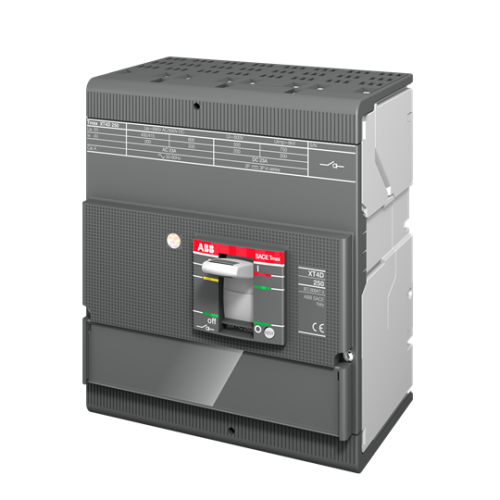

XT4D 250 4p F F

Manufacturer's No: 1SDA068213R1     Manufacturer: ABB
XT4D 250 4p F F

Availability Available to order

£786.23
  • Model: XT4D 250
  • Type: Switch-Disconnector
  • Configuration: Four-Pole
  • Terminals: Front
  • Maximum Current: 250A


Product

Manufacturer Material ID -
1SDA068213R1
Net Weight -
3.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Type of control element -
Toggle
Colour control element -
White
Degree of protection (IP), front side -
IP20
Depth -
82.5 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
160 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
0 Volt
Rated permanent current at AC-21, 400 V -
250 Ampere
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
3.6 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Width -
140 Millimetre
ABB

Availability Available to order

£786.23
