1SDA071021R1

E2.2B 2000 Ekip Dip LI 3p F HR

Manufacturer's No: 1SDA071021R1     Manufacturer: ABB
E2.2B 2000 Ekip Dip LI 3p F HR

Availability Back Order

£7,158.02

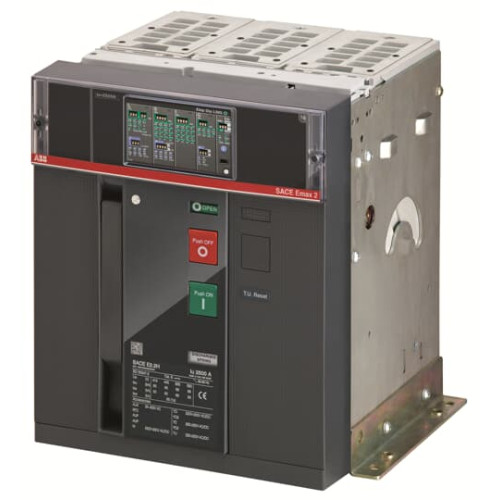

  • Model: E2.2B 2000 Ekip Dip LI 3p F HR
  • Circuit Breaker Type: SACE EMAX2 E2.2B 2000
  • Configuration: Fixed three-pole with terminals rear horizontal
  • Release Type: Solid-state in AC EKIP/DIP-LI R 2000
  • Features: 4 auxiliary contacts and circuit breaker in open-closed position


Product

Manufacturer Material ID -
1SDA071021R1
Net Weight -
55.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP30
With switched-off indicator -
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
42 kiloampere
Adjustment range undelayed short-circuit release -
3000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
800 Ampere
Position of connection for main current circuit -
Back
Power loss -
212 Watt
Rated permanent current Iu -
2000 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
42 kiloampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Bolt connection
