1SDA072288R1

E2.2S 1000 Ekip Hi-Touch LSI 3p WMP

Manufacturer's No: 1SDA072288R1     Manufacturer: ABB
E2.2S 1000 Ekip Hi-Touch LSI 3p WMP

Availability Back Order

£9,337.29

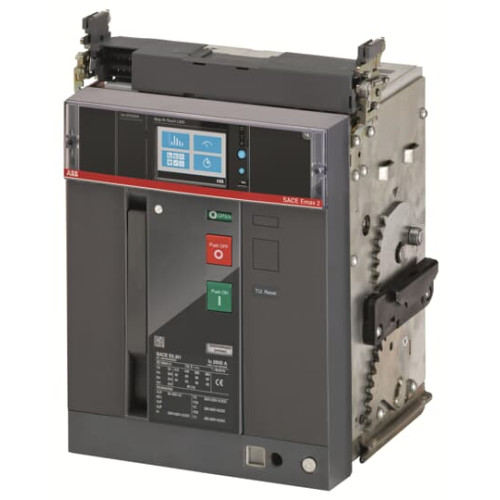

MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 1000 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED


Product

Manufacturer Material ID -
1SDA072288R1
Net Weight -
49.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Degree of protection (IP) -
UN
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
600 Ampere
Adjustment range undelayed short-circuit release -
1500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP30
Device construction -
Built-in device slide-in technique (withdrawable)
Motor drive optional -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
400 Ampere
Position of connection for main current circuit -
Connection at separate chassis part
Power loss -
113 Watt
Rated permanent current Iu -
1000 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Connection at separate chassis part
ABB

Availability Back Order

£9,337.29
