1SLM004100A1400

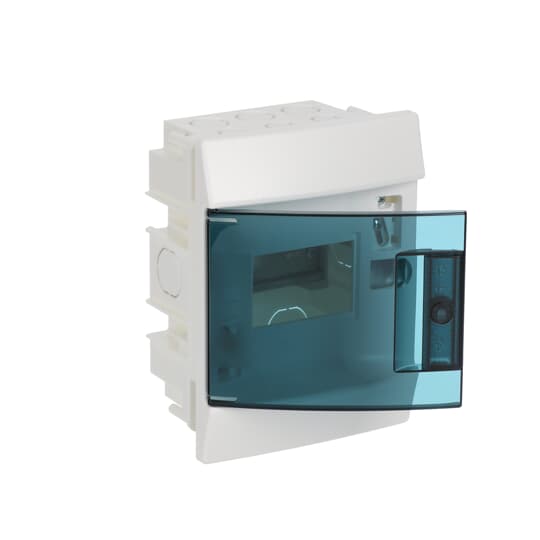

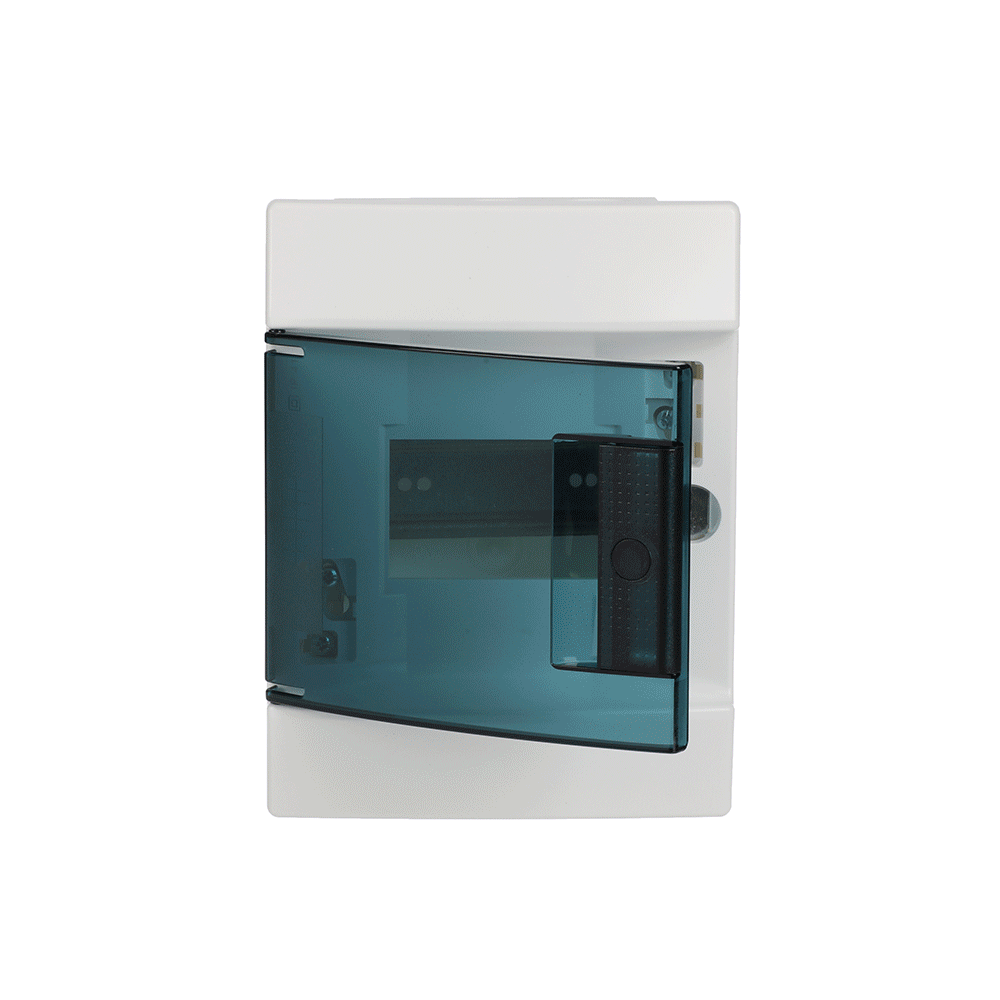

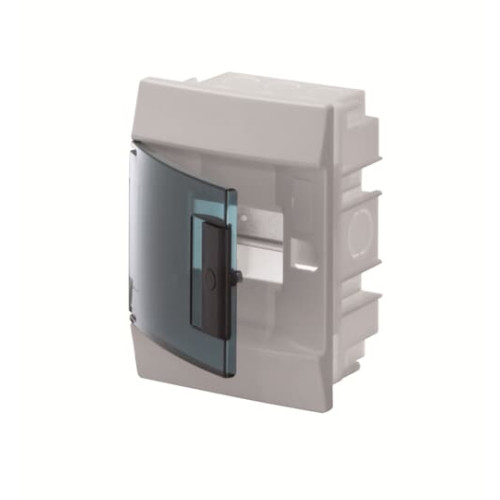

41C04X12 Consumer unit , Hollow wall, 4 modules, 1 row(s), IP41, Door: Single, Plastic, Transparent, Dimensions: 202 mm x 152 mm

Manufacturer's No: 1SLM004100A1400     Manufacturer: ABB
41C04X12 Consumer unit , Hollow wall, 4 modules, 1 row(s), IP41,  Door: Single, Plastic, Transparent, Dimensions: 202 mm x 152 mm x 104 mm

Availability On Request

POA
MISTRAL41F flush 850 transparent door 4M


Product

Manufacturer Material ID -
1SLM004100A1400
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Built-in depth -
- Millimetre
RAL-number -
9016
Type of cover -
Door
DIN-rail -
Material housing -
Plastic
Degree of protection (IP) -
IP41
Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP41
Depth -
104 Millimetre
Extension possible -
Height -
202 Millimetre
Housing material -
Plastic
Internal depth -
73 Millimetre
Mounting method -
Hollow wall
Number of rows -
1
RAL number -
9016
Recess depth -
79 Millimetre
Transparent cover/door -
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
152 Millimetre
Width in number of modular spacings -
4
With DIN-rail -
With lock -
