1SCA022383R0860

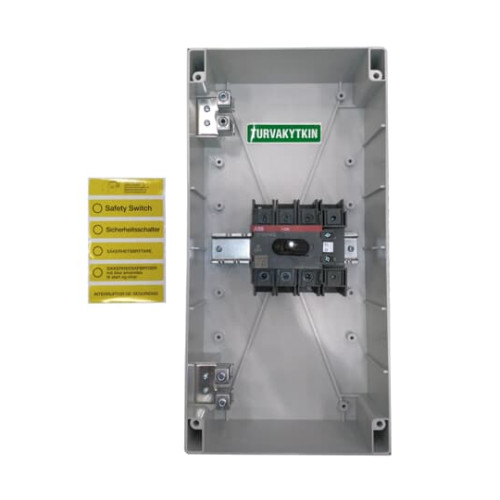

Safety switch, 4-p. 400V AC23 80A, 37kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlockin

Manufacturer's No: OTP75T4B     Manufacturer: ABB
Safety switch, 4-p. 400V AC23 80A, 37kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking.

Availability On Request

£399.15
  • Safety switch for 400V AC23 applications
  • 4-pole configuration with a current rating of 80A
  • Maximum power rating of 37kW
  • Plastic enclosure with IP65 protection
  • Black selector handle for easy operation
  • Interlocked cover for safety
  • Defeatable interlocking feature for flexibility


Product

Manufacturer Material ID -
OTP75T4B
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
FI
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Degree of protection (NEMA) -
UN
Rated operation power at AC-3, 400 V -
37 Kilowatt
Type of control element -
Turn button
Suitable for ground mounting -
Number of auxiliary contacts as normally open contact -
1
Rated permanent current Iu -
115 Ampere
Number of poles -
4
Rated operating voltage -
750 Volt
Degree of protection (IP), front side -
IP65
Number of auxiliary contacts as change-over contact -
0
Number of switches -
1
Interlockable -
Version as main switch -
Version as safety switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
37 Kilowatt
Colour control element -
Black
Suitable for front mounting 4-hole -
Max. rated operation voltage Ue AC -
750 Volt
Device construction -
Complete device in housing
Rated permanent current at AC-21, 400 V -
100 Ampere
Switching power at 400 V -
37 Kilowatt
Rated permanent current at AC-23, 400 V -
80 Ampere
ABB

Availability On Request

£399.15
