1SCA022401R0330

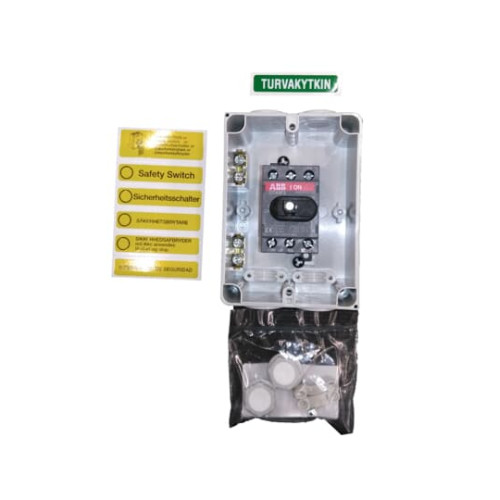

Safety switch, 3-p. 400V AC23 16A, 7.5kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interl

Manufacturer's No: OTP16KA3M1     Manufacturer: ABB
Safety switch, 3-p. 400V AC23 16A, 7.5kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking.

Availability On Request

£69.40
  • Safety switch for 3-phase systems
  • Rated at 400V AC23 with a current of 16A and power of 7.5kW
  • Plastic enclosure with IP65 protection
  • Red and yellow selector handle for easy identification
  • Interlocked cover for safety
  • Defeatable interlocking feature


Product

Manufacturer Material ID -
OTP16KA3M1
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
FI
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Degree of protection (NEMA) -
UN
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Type of control element -
Turn button
Suitable for ground mounting -
Rated permanent current Iu -
40 Ampere
Number of poles -
3
Rated operating voltage -
750 Volt
Degree of protection (IP), front side -
IP65
Number of auxiliary contacts as change-over contact -
0
Number of switches -
1
Interlockable -
Version as main switch -
Version as safety switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Colour control element -
Red
Suitable for front mounting 4-hole -
Max. rated operation voltage Ue AC -
750 Volt
Device construction -
Complete device in housing
Rated permanent current at AC-21, 400 V -
32 Ampere
Switching power at 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
ABB

Availability On Request

£69.40
