1SCA022401R3350

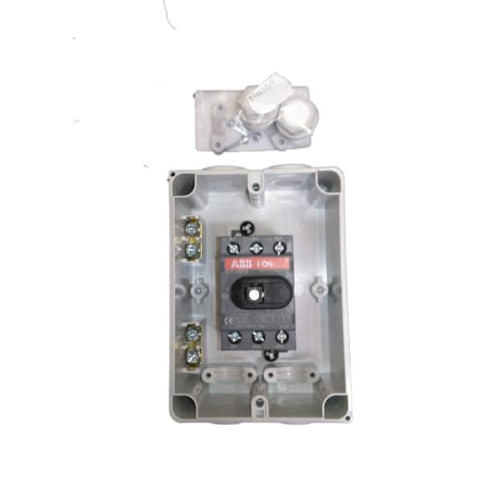

Enclosed Switch Disconnector, 3-p. 400V AC22 16A, Plastic enclosure, RedYellow Selector handle. Interlocked cover. Defeatable inte

Manufacturer's No: OTP16BA3M     Manufacturer: ABB
Enclosed Switch Disconnector, 3-p. 400V AC22 16A, Plastic enclosure, RedYellow Selector handle. Interlocked cover. Defeatable interlocking.

Availability Available to order

£51.34
  • Enclosed Switch Disconnector
  • 3-pole
  • 400V AC22
  • 16A
  • Plastic enclosure
  • Red/Yellow Selector handle
  • Interlocked cover
  • Defeatable interlocking


Product

Manufacturer Material ID -
OTP16BA3M
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
LT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Degree of protection (NEMA) -
UN
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Type of control element -
Turn button
Suitable for ground mounting -
Rated permanent current Iu -
25 Ampere
Number of poles -
3
Rated operating voltage -
750 Volt
Degree of protection (IP), front side -
IP65
Number of auxiliary contacts as change-over contact -
0
Number of switches -
1
Interlockable -
Version as main switch -
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Colour control element -
Red
Suitable for front mounting 4-hole -
Max. rated operation voltage Ue AC -
750 Volt
Device construction -
Complete device in housing
Rated permanent current at AC-21, 400 V -
16 Ampere
Switching power at 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
ABB

Availability Available to order

£51.34
