1SCA022432R1090

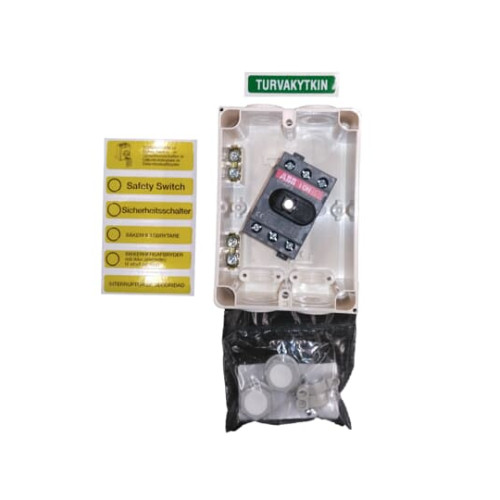

Safety switch 3-p.400V AC23A 7.5kW AC22A 16A Plastic enclosure IP65 White Round handle. Interlocked cover.

Manufacturer's No: OTP16H3M1     Manufacturer: ABB
Safety switch 3-p.400V AC23A 7.5kW AC22A 16A Plastic enclosure IP65 White Round handle. Interlocked cover.

Availability On Request

£58.58
  • Safety switch for 3-phase systems
  • Rated for 400V AC, 23A, and 7.5kW (AC23A)
  • Also rated for 16A (AC22A)
  • Plastic enclosure with IP65 protection
  • White round handle design
  • Interlocked cover for added safety


Product

Manufacturer Material ID -
OTP16H3M1
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
FI
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Number of auxiliary contacts as change-over contact -
-
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Degree of protection (NEMA) -
UN
Type of control element -
Turn button
Rated permanent current Iu -
40 Ampere
Number of poles -
3
Rated operating voltage -
750 Volt
Degree of protection (IP), front side -
IP65
Number of switches -
1
Interlockable -
Version as main switch -
Version as safety switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Colour control element -
White
Suitable for front mounting 4-hole -
Max. rated operation voltage Ue AC -
750 Volt
Device construction -
Complete device in housing
Rated permanent current at AC-21, 400 V -
32 Ampere
Switching power at 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
ABB

Availability On Request

£58.58
