1SVR508100R0000

CT-ERC.12 Time relay, ON-delay 1c/o, 24-48VDC/24-240VAC

Manufacturer's No: CT-ERC.12     Manufacturer: ABB

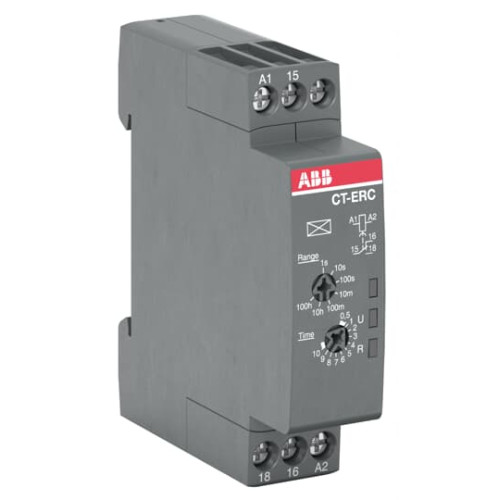

CT-ERC.12 Time relay, ON-delay 1c/o, 24-48VDC/24-240VAC

Availability In Stock

£42.88
  • Model: CT-ERC.12
  • Type: Single-function electronic time relay
  • Function: ON-delay (delay on make)
  • Time Ranges: 0.05 s to 100 h
  • Control Supply Voltage: 24-48 V DC / 24-240 V AC
  • Output: 1 c/o (SPDT) rated at 250 V / 4 A
  • Part of CT-C timer range


Product

Manufacturer Material ID -
CT-ERC.12
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
63 Millimetre
Function delay-on energization -
Height -
70 Millimetre
Nominal current -
4 Ampere
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
1
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
