2TLA020007R3000

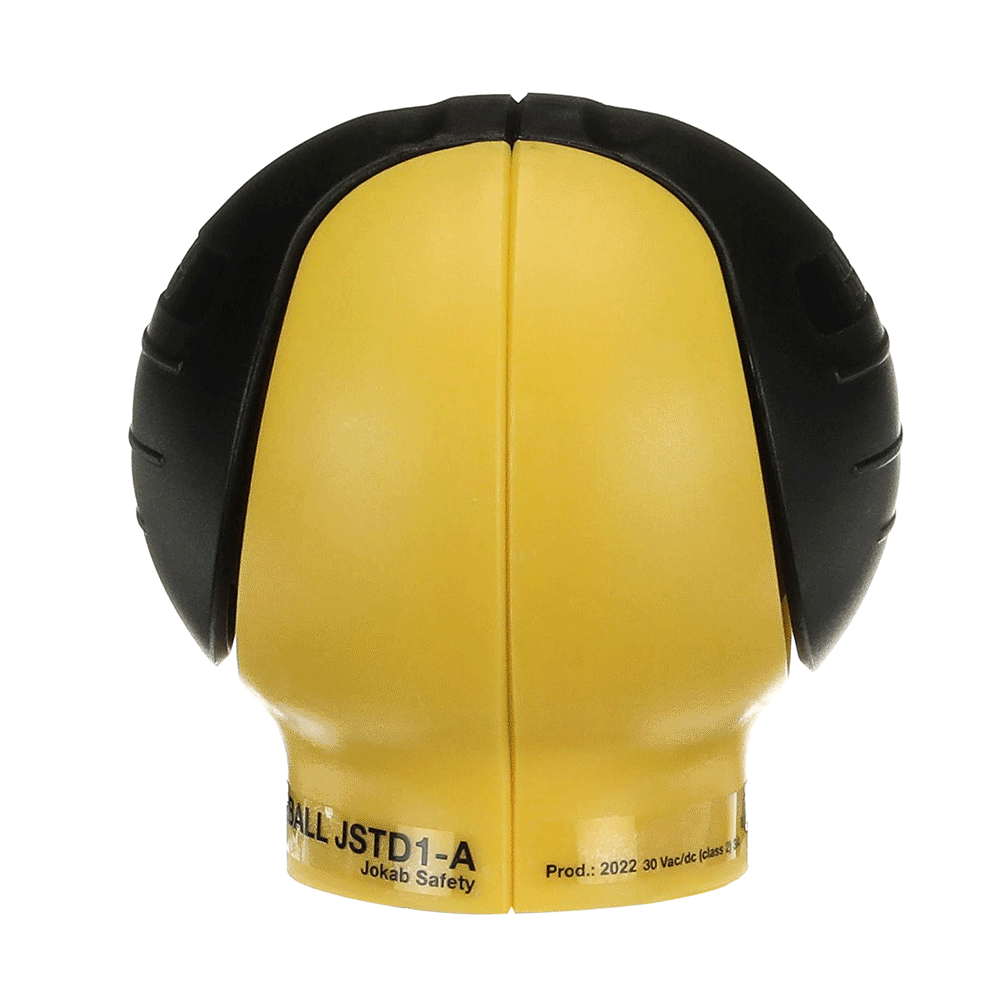

JSTD1-A Safeball

Manufacturer's No: 20-007-30     Manufacturer: ABB
JSTD1-A Safeball

Availability Back Order

£169.51
  • JSTD1-A Safeball with two contacts: 1NO and 1NC
  • 2m long cable with 4 conductors
  • Low activation force of approximately 2N
  • Maximum load: 30VDC, 2A resistive
  • IP67 protection degree
  • Ergonomic design with multiple grip possibilities
  • Body made of polypropylene
  • Consists of a spherical ball with two pushbuttons for two-hand control
  • Requires both buttons to be pressed to start and operate the machine
  • Minimizes risk of unintentional activation

Read more

  • Stop signal sent to machine if any button is released


Product

Manufacturer Material ID -
20-007-30
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
8536201090
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

Rated permanent current Iu -
- Ampere
Number of poles -
-
Type of switch -
UN
Max. rated operation voltage Ue AC -
- Volt
Device construction -
UN
Number of switch positions -
3
Width in number of modular spacings -
72
Degree of protection (IP), front side -
IP67
Type of control element -
Other
Front shield size -
Other
Suitable for floor mounting -
Suitable for front mounting 4-hole -
Suitable for distribution board installation -
Suitable for intermediate mounting -
Complete device in housing -
Degree of protection (NEMA), front side -
Other
Cross-wire monitoring possible -
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of extra push buttons -
0
Performance level acc. to EN ISO 13849-1 -
Level e
Rated operation current Ie at DC-12, 24 V -
0.02 Ampere
Suitable for safety functions -
Type of electric connection -
Other
Type of switching contact -
Other
