2002-1602

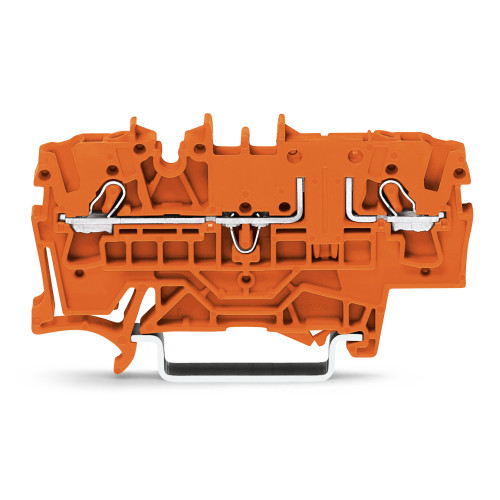

2-conductor through terminal block with test option as 2-conductor disconnect tb orange

Manufacturer's No: 2002-1602     Manufacturer: WAGO
2-conductor through terminal block with test option as 2-conductor disconnect tb orange

Availability On Request

£2.56
List Price £2.56
  • 2-conductor through terminal block with test option
  • Color: Orange
  • Same profile as 2-conductor disconnect terminal block


Product

Manufacturer Material ID -
2002-1602
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CN
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
66.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
32.9 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Orange
Rated voltage -
400 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Closing plate required -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Number of levels -
1
Number of clamp positions per level -
2
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
16 Ampere
Explosion-tested version 'Ex e' -

Availability On Request

£2.56
List Price £2.56
