2002-2662

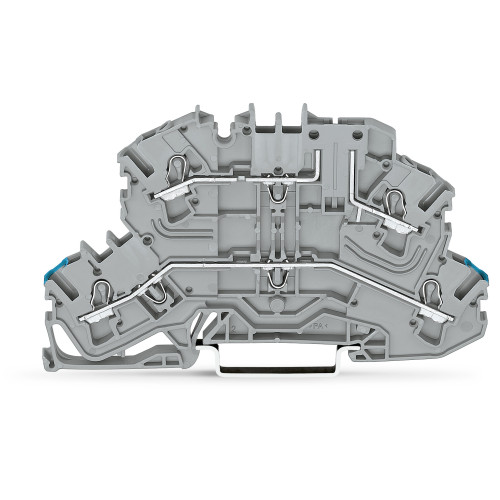

Double-Deck Carrier Terminal Block, Upper-Deck Base Gray Housing Gray

Manufacturer's No: 2002-2662     Manufacturer: WAGO
Double-Deck Carrier Terminal Block, Upper-Deck Base Gray Housing Gray

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.00

£3.61
  • Double-deck carrier terminal block
  • Upper-deck base with gray housing
  • Suitable for DIN-rail 35 x 15 and 35 x 7.5
  • Terminal block for N/L connections
  • Terminal block with 2.5 mm pitch


Product

Manufacturer Material ID -
2002-2662
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Length -
93 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
51.7 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Grey
Rated voltage -
400 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Number of levels -
2
Number of clamp positions per level -
2
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
16 Ampere
Explosion-tested version 'Ex e' -

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.00

£3.61
