2022-102/132-000

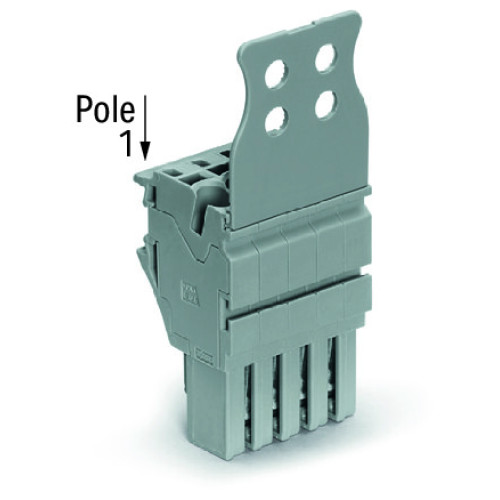

1-conductor female connector, Push-in CAGE CLAMP®, 4 mm², gray

Manufacturer's No: 2022-102/132-000     Manufacturer: WAGO
1-conductor female connector, Push-in CAGE CLAMP®, 4 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.50
List Price £2.50
  • 1-conductor female connector
  • Push-in CAGE CLAMP® for easy and secure connection
  • 4 mm² wire capacity
  • Pin spacing of 5.2 mm
  • 2-pole configuration
  • Includes strain relief plate for added durability
  • Color: gray

Accessories

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-242
Price £0.09
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-262
Price £0.09
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-263
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-244
Price £0.09
On Request

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-264
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-246
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-266
Price £0.09
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-286
Price £0.15
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-171
Price £0.15
List Price £0.15
On Request

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-172
Price £0.15
List Price £0.15
On Request


Product

Manufacturer Material ID -
2022-102/132-000
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
22.4 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
10.4 Millimetre
Height at lowest possible mounting height -
58 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Depth -
56.5 Millimetre
Halogen free -
Height -
22.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
2
Operating temperature -
105 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
690 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10.4 Millimetre
